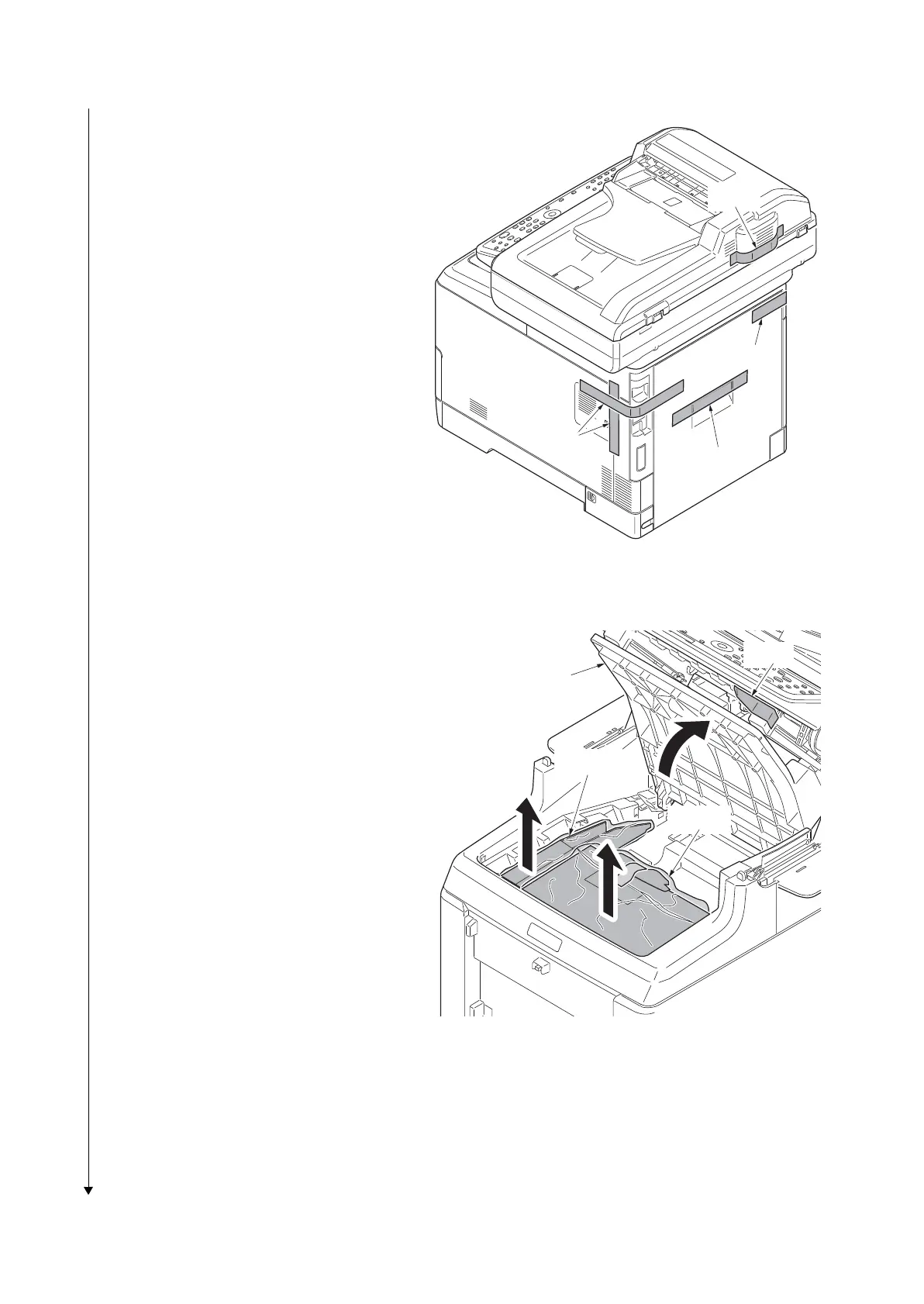

14. Remove five tapes.
Figure 1-2-10
15. Open the inner tray.
16. Remove the tape.
17. Remove pads A and B.
18. Close the inner tray.
Figure 1-2-11
Tape
Tape
Tapes
Tape
Inner tray
Pad A
Pad B
Tape
