Installing and Setting up the Machine > Part Names

Part Names

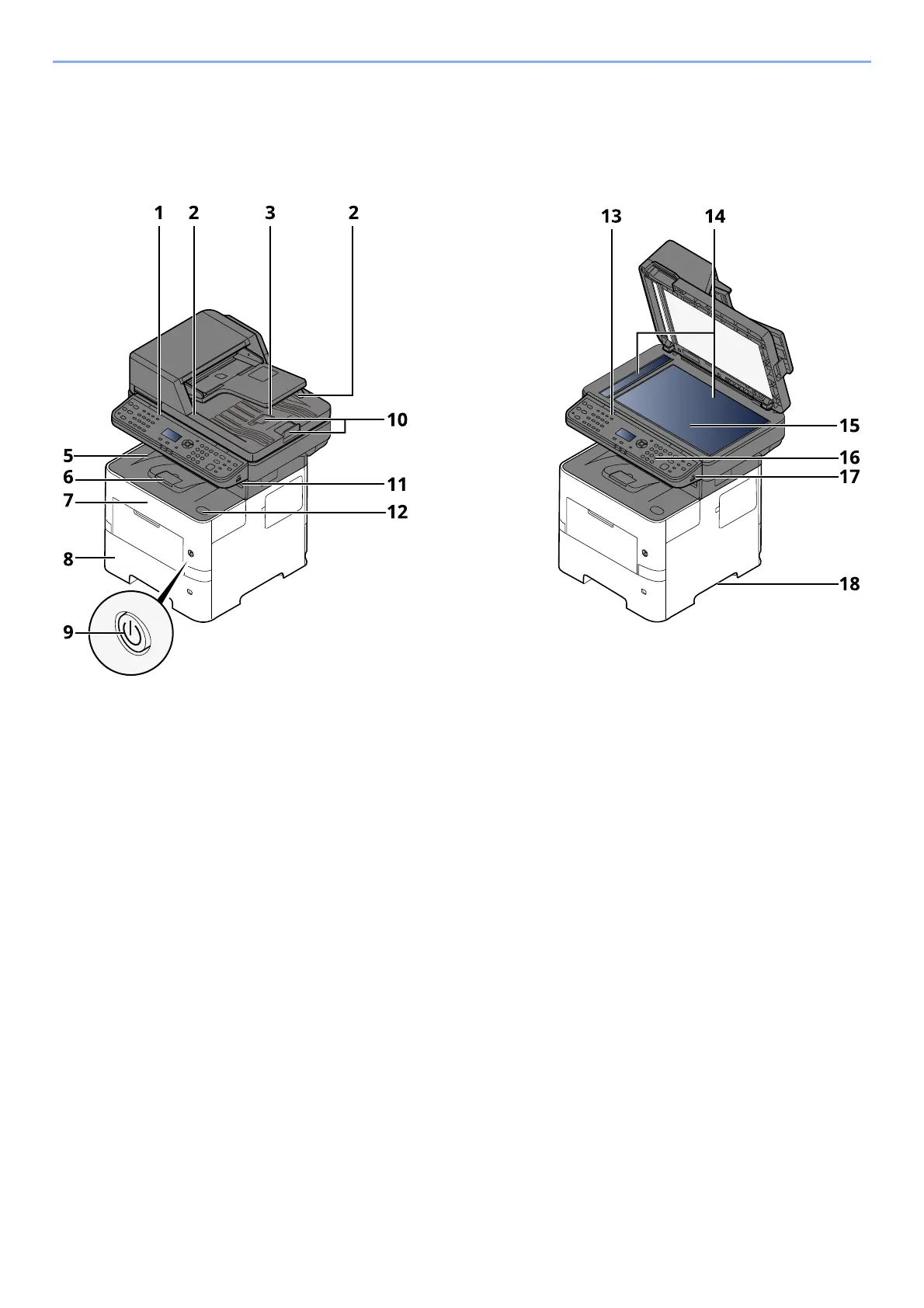

Machine Exterior

1 Document Processor

2 Original Width Guides

3 Original Table

4 Original Eject Table

5 Inner Tray

6 Paper Stopper

7Front Cover

8 Cassette 1

9Power Switch

10 Original Stopper

11 USB Drive Slot (for card reader)

12 Front Cover Open Button

13 Slit Glass

14 Original Size Indicator Plates

15 Platen

16 Operation Panel

17 USB Drive Slot

18 Handles
