Using the Operation Panel

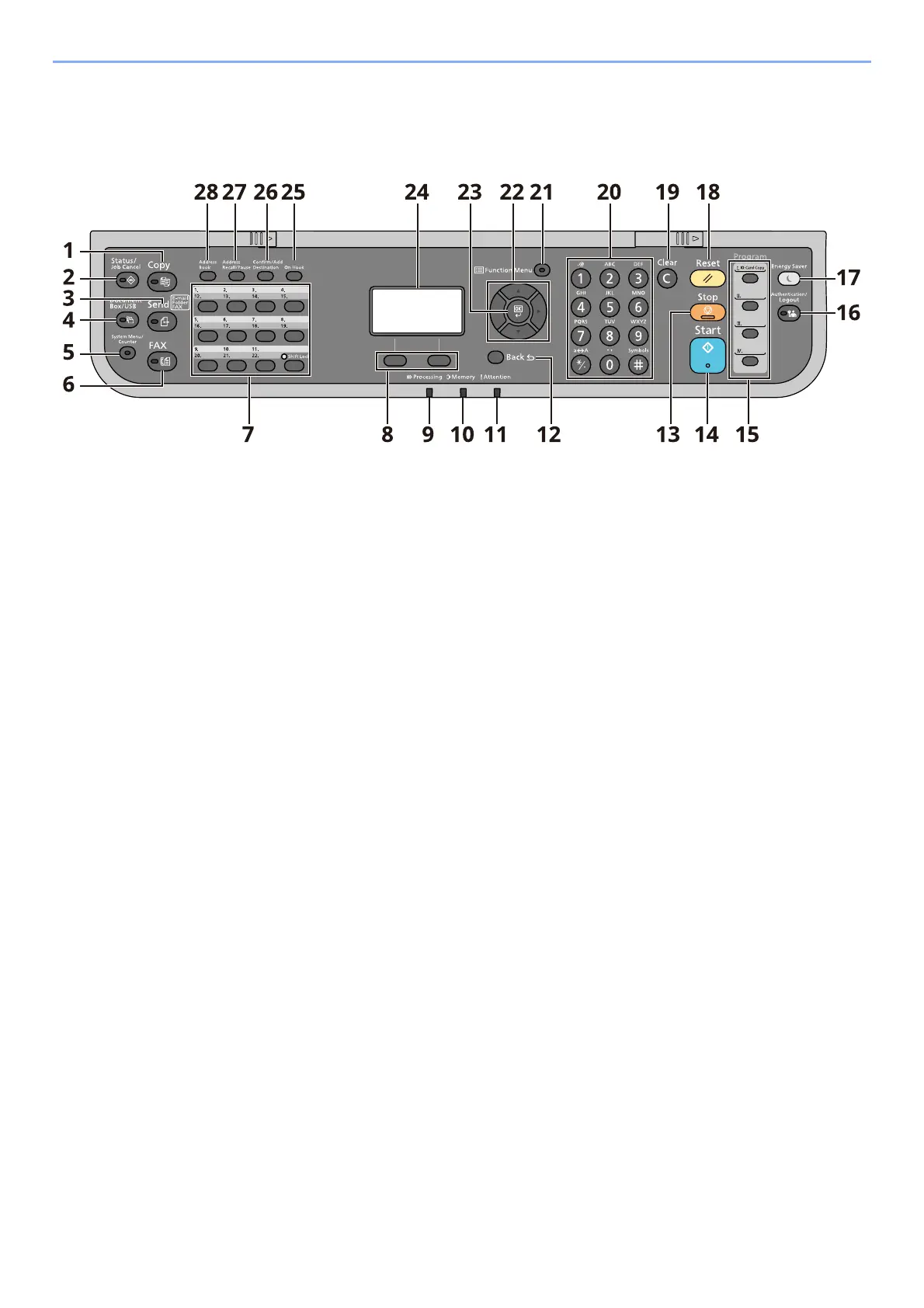

Operation Panel Keys
1 [Copy] key: Displays the Copy screen.
2 [Status/Job Cancel] key: Displays the Status/Job Cancel screen.
3 [Send] key: Displays the screen for sending. You can change it to display the Address Book screen.
4 [Document Box] key: Displays the Document Box/USB screen.
5 [System Menu/Counter] key: Displays the System Menu/Counter screen.
6 [FAX] key: Displays the FAX screen. (Only on products with the fax function installed.)
7 Recalls the destination registered for One Touch Key.
8 Select Key: Selects the menu displayed at the bottom of the message display.
9 Processing: Blinks while printing or sending/receiving.
10 Memory: Blinks while the machine is accessing the machine memory, fax memory or USB drive (general
purpose item).
11 Attention: Lights or blinks when an error occurs and a job is stopped.
12 [Back] key: Returns to the previous display.
13 [Stop] key: Cancels or pauses the job in progress.
14 [Start] key: Starts copying and scanning operations and processing for setting operations.
15 Used to register or recall programs.
16 [Authentication/Logout] key: Authenticates user switching, and exits the operation for the current user (i.e. log out).
17 [Energy Saver] key: Puts the machine into Sleep Mode. Recovers from Sleep if in Sleep Mode.
18 [Reset] key: Returns settings to their default states.
19 [Clear] key: Clears entered numbers and characters.
20 Numeric keys: Enter numbers and symbols.
21 [Function Menu] key: Displays the function menu screen.
22 Increments or decrements numbers, or selects menu in the message display. In addition, moves the cursor
when entering the characters.
23 [OK] key: Finalizes a function or menu, and numbers that have been entered.
24 Message display:
Displays the setting menu, machine status, and error messages.
25 [On Hook] key: Switches between on-hook and off-hook when manually sending a FAX.
26 [Confirm/Add Destination] key: Confirms the destination or adds a destination.
27 [Address Recall/Pause] key: Calls the previous destination. Also used to enter a pause when entering a FAX number.
28 [Address Book] key: Displays the Address Book screen.
