Canopy (optional)

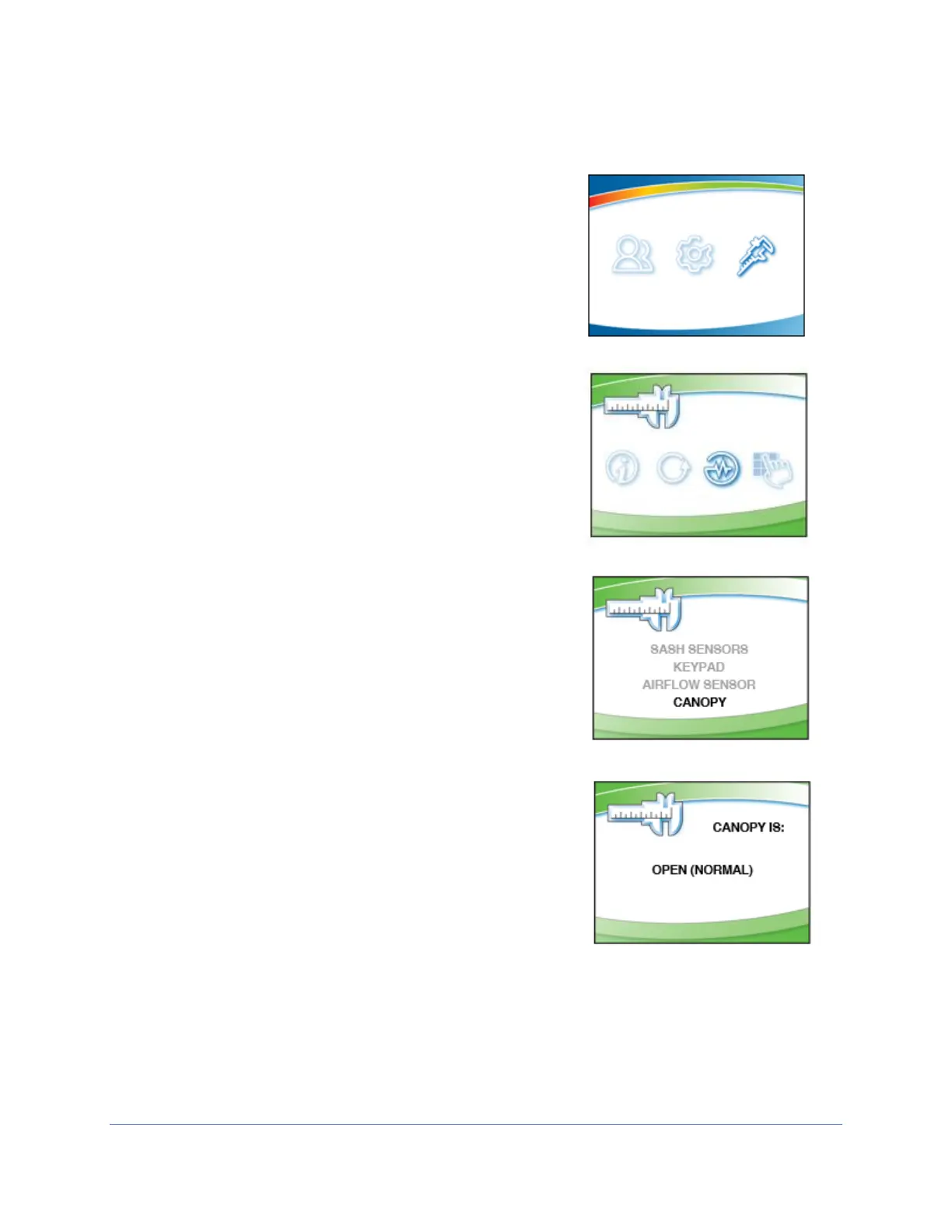

1. From the Home Screen, press [MENU].
2. Press [DOWN] to select the Tools option.
3. Press [OK/MUTE] to enter the submenu.
4. Press [DOWN] until the Diagnostics option is
highlighted, then [OK/MUTE] to enter the
submenu.
5. Press [DOWN] until the Canopy option is
highlighted, then [OK/MUTE] to enter Canopy
diagnostic.
NOTE: Type B2 cabinets will not display
Canopy, because they cannot have a canopy.
6. The display shows the status of the Canopy Inlet
Valve. During normal operation, it will be OPEN;
during a canopy alarm, it will be CLOSED.
NOTE: The Canopy Inlet Valve position is
OPPOSITE the magnetic switch condition used
to detect the Inlet Valve position! – WHEN THE
INLET VALVE IS OPEN (NORMAL), THE
MAGNETIC SWITCH IS CLOSED (completes
the electrical circuit).
7. Press [MENU] to return to the Diagnostic submenu.
