Data Output String Definition
The data string is limited to 80 characters, including spaces and commas. Use Figure
16-4 to understand the character signficance.
See Figure 16-5 on the following page for each character field’s value range.

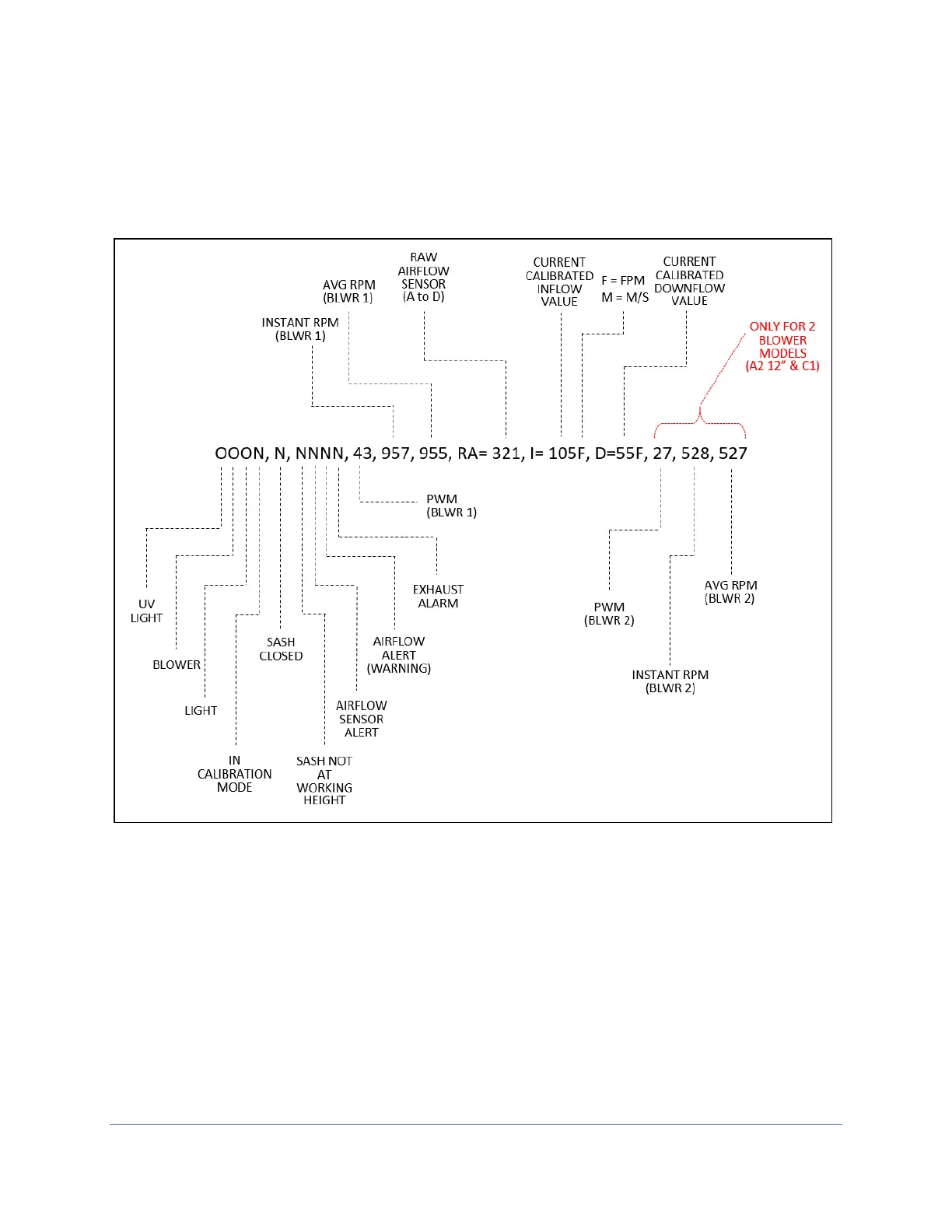

Figure 16-4
