Labconco Logic+ A2 - Page 61

61

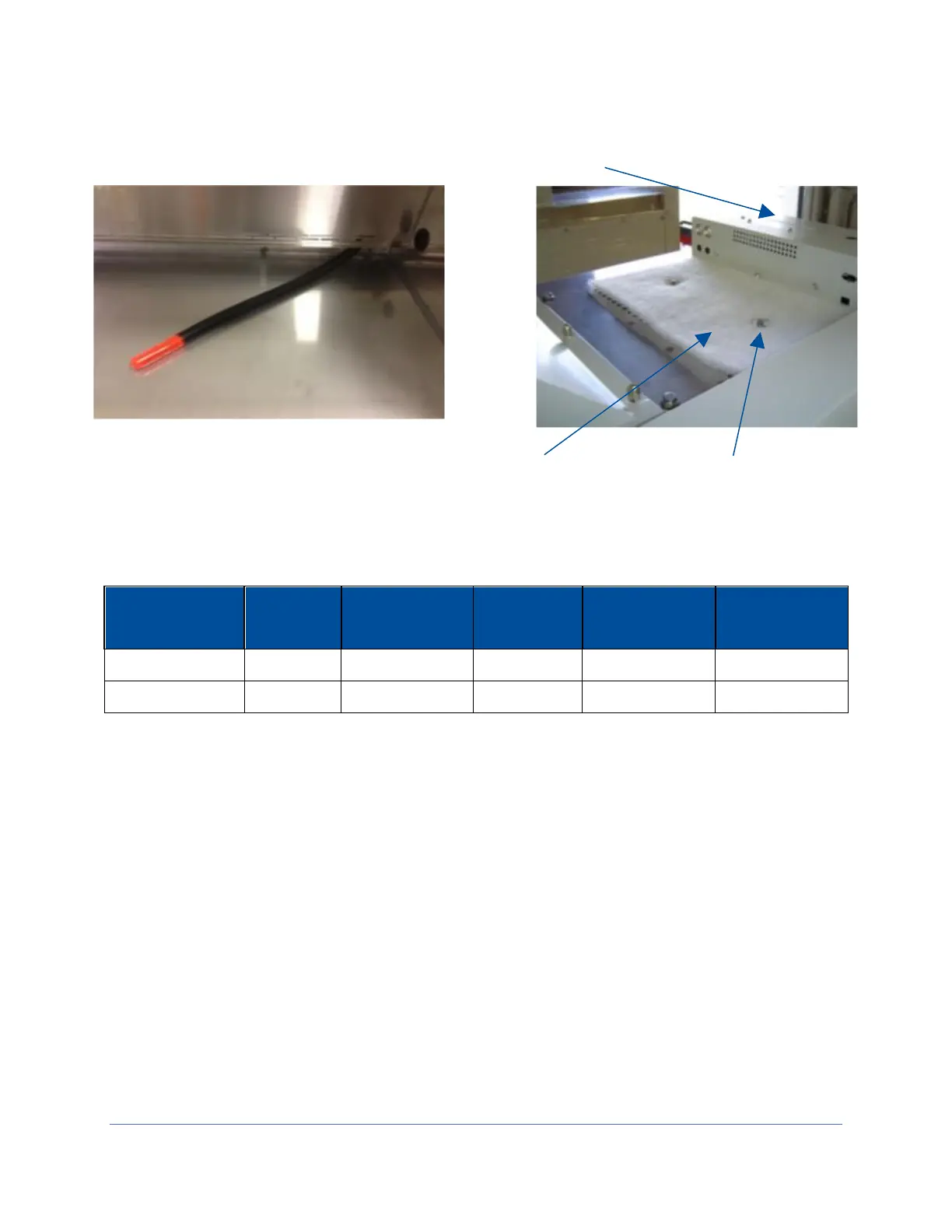

Figure 10-9
Figure 10-10
Type B2
Cabinet Width
Sash
Height
(inches)
Supply Air
Displacement
(CFM)
Laskin
Nozzles
Required
Calculated
Concentration
(ug/L)
1
Actual
Concentration
(ug/L)
2
4-foot
8
445
1
30
15
6-foot
8
665
1
20
12
1. The calculated concentration was established using the formula:
Concentration (ug/l) = (# Laskin nozzles @ 23 PSIG x 13,500) / Volume of air displaced
2. Based on Mineral oil
Table 10-2
Pre-Filter
Thumbnuts (2)
Place aerosol
generator here
