Leviton D4200 LCD Ver 2.0 Architectural Lighting Controller Page 10 of 80

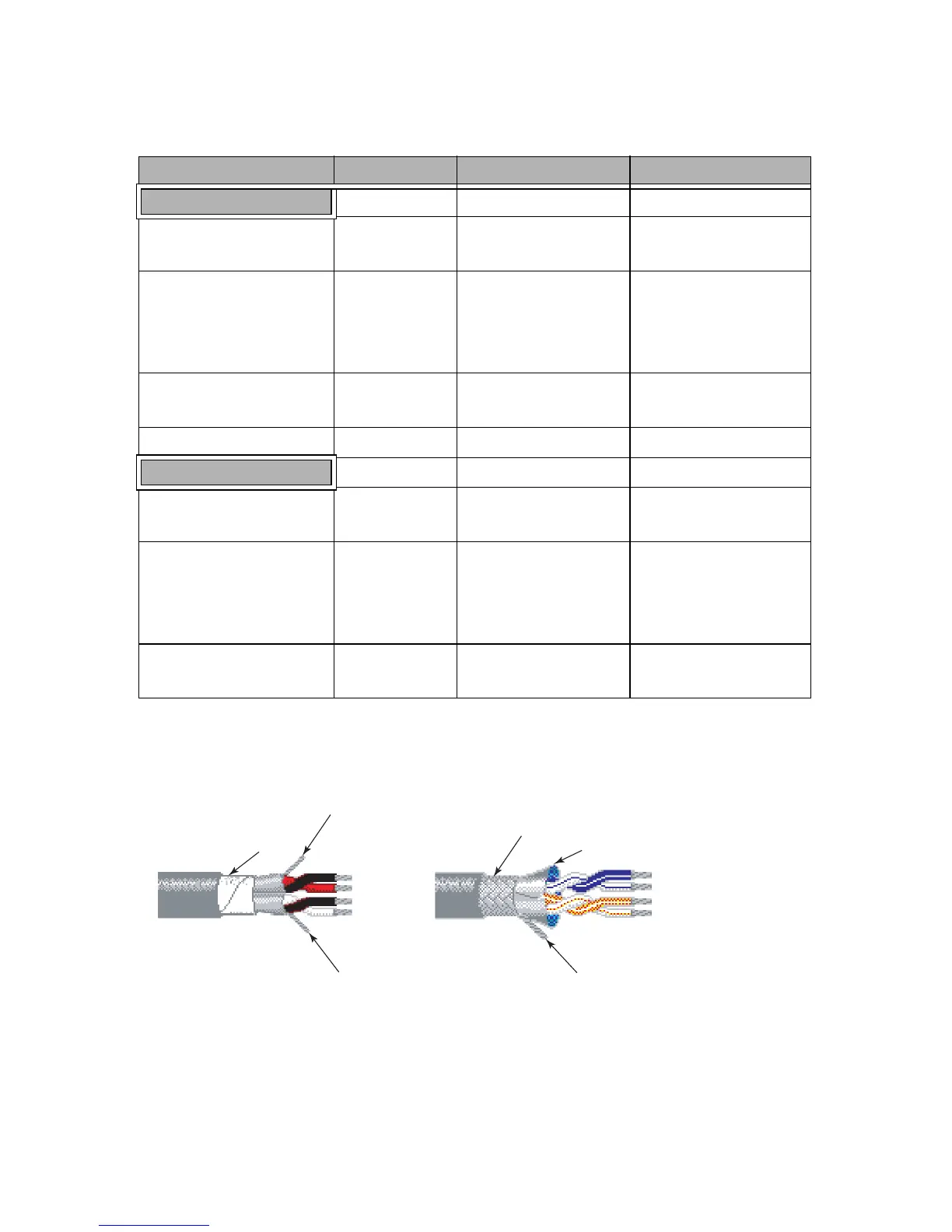

Table 5 - Color Coding for Belden Wire
Figure 3 - Belden Wire Callouts
Wire/Color No. Pair Pin/Terminal Pin/Function
Belden 9729
Red
Black
11
2
REM+
REM-
Red
White
2 N/C - Not Con-
nected
N/C - Not Con-
nected
N/C - Not Con-
nected
N/C - Not Con-
nected
Drains/Shields N/C - Not Con-
nected
See Notes Fig. 3
Belden 9829
Blue with white stripe
White with blue stripe
11
2
REM+
REM-
Orange with white
stripe
White with orange
stripe
2 N/C - Not Con-
nected
N/C - Not Con-
nected
N/C - Not Con-
nected
N/C - Not Con-
nected
Drain/Shield N/C - Not Con-
nected
See Notes Fig. 3
Drain/Sheild
Drain/Sheild
Belden 9729
Drain/Sheild
Braid
Foil
Foil
Belden 9829
Black
Red
Black
White
Blue w/ White Stripe
White w/ Blue Stripe
Orange w/ White Stripe
White w/ Orange Stripe
