Lexmark 4036-307 - Hard Disk Drive Assembly Removal

4-38 Service Manual
4036-307, -308

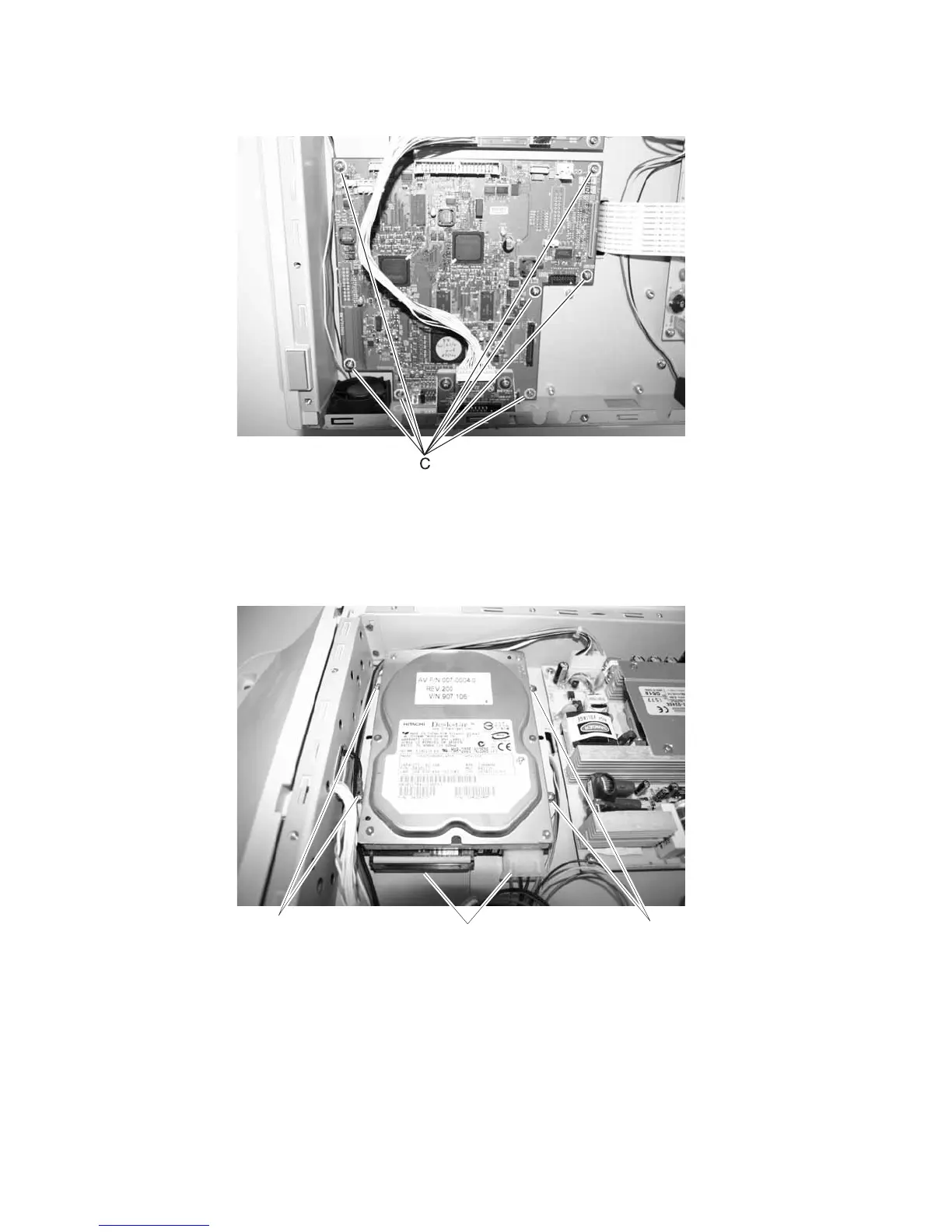

3. Remove the seven screws (C) securing the board.
Note: Run registration if you are installing a new scanner control board. See “Configuration menu (CONFIG
MENU)” on page 3-6.
Hard disk drive assembly removal
Disconnect the two cables (A), and remove the four screws (B).
Note: Run registration if you are installing a new hard disk drive. See “Configuration menu (CONFIG MENU)”
on page 3-6.
Note: Customer date (forms, fonts, etc.) need to be reloaded on the hard disk drive.
A
B
B
