2-26 Service Manual
4036-307, -308
LCD touch-screen buttons
The following section provides information on navigating through several screens. Only a few are chosen to
demonstrate the use of the touch-screen buttons.
Sample screen one

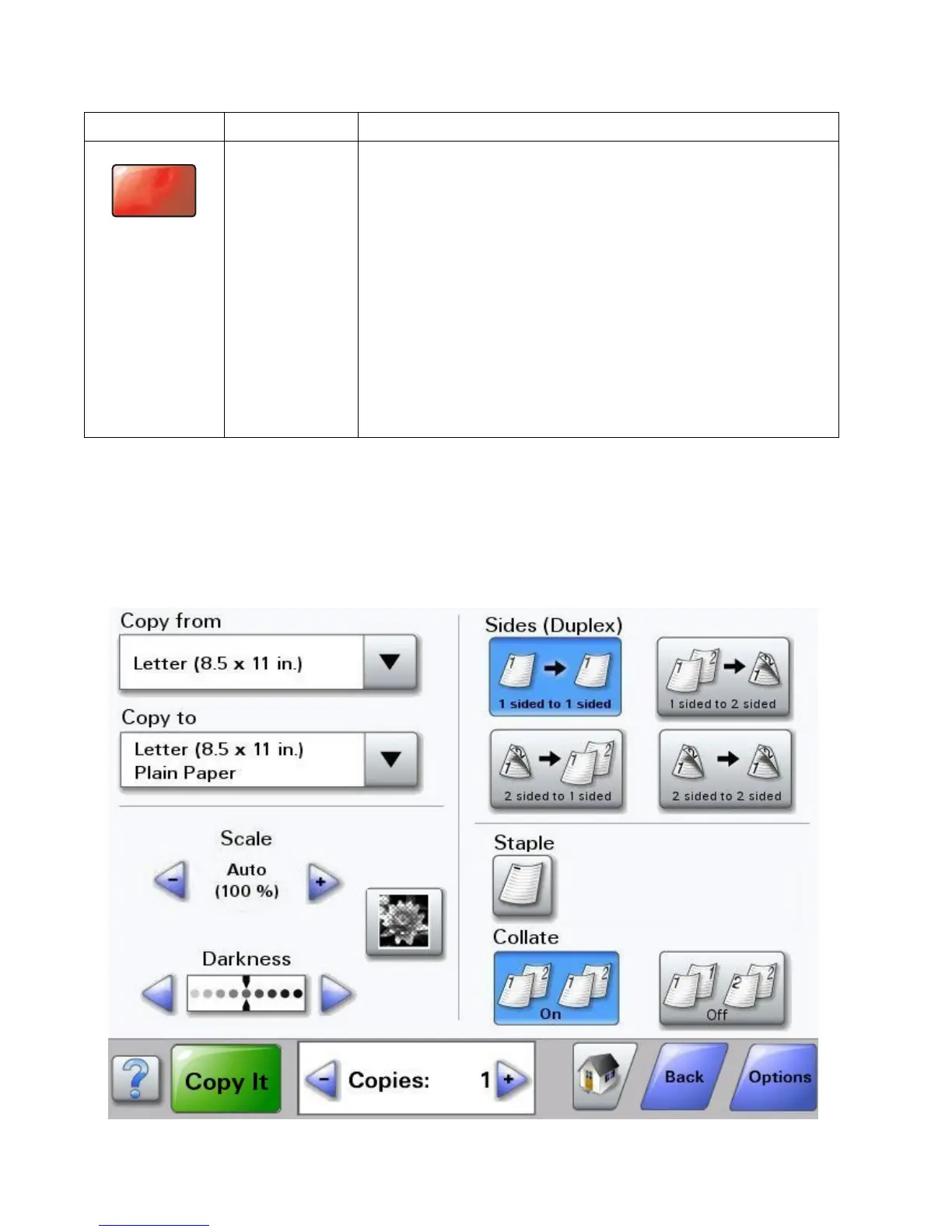

The touch screen appears as follows when the touch screen MFP is a mono printer.
Cancel Jobs Open the Cancel Jobs screen. The Cancel Jobs screen shows any of the
following items under three headings on the screen, which are Print, Fax,
and Network:
•print job
•copy job
•fax
•profile
• FTP
• e-mail send
Each heading has its own list of jobs shown in a column under it. Each
column can only show three jobs per screen. Each job appears as a button.
If more than three jobs exist in a column, then the down arrow appears at
the bottom of the column. Each touch of the down arrow accesses one job in
the list. When more than three jobs exist, once the fourth job in the list is
reached, then an up arrow appears at the top of the column. For illustrations
of the up and down arrow buttons, see “Information on LCD touch-screen
buttons” on page 2-27.
To cancel a job, refer to the User’s Guide for instructions.
Button Button name Function
Cancel
Jobs
To Next Page
