Lexmark 4036-307 - ADF Motor;Distribution Board Removal

Repair information 4-11
4036-307, -308
ADF motor/distribution board removal
1. Remove document cover assembly. See “Document cover assembly removal” on page 4-14.

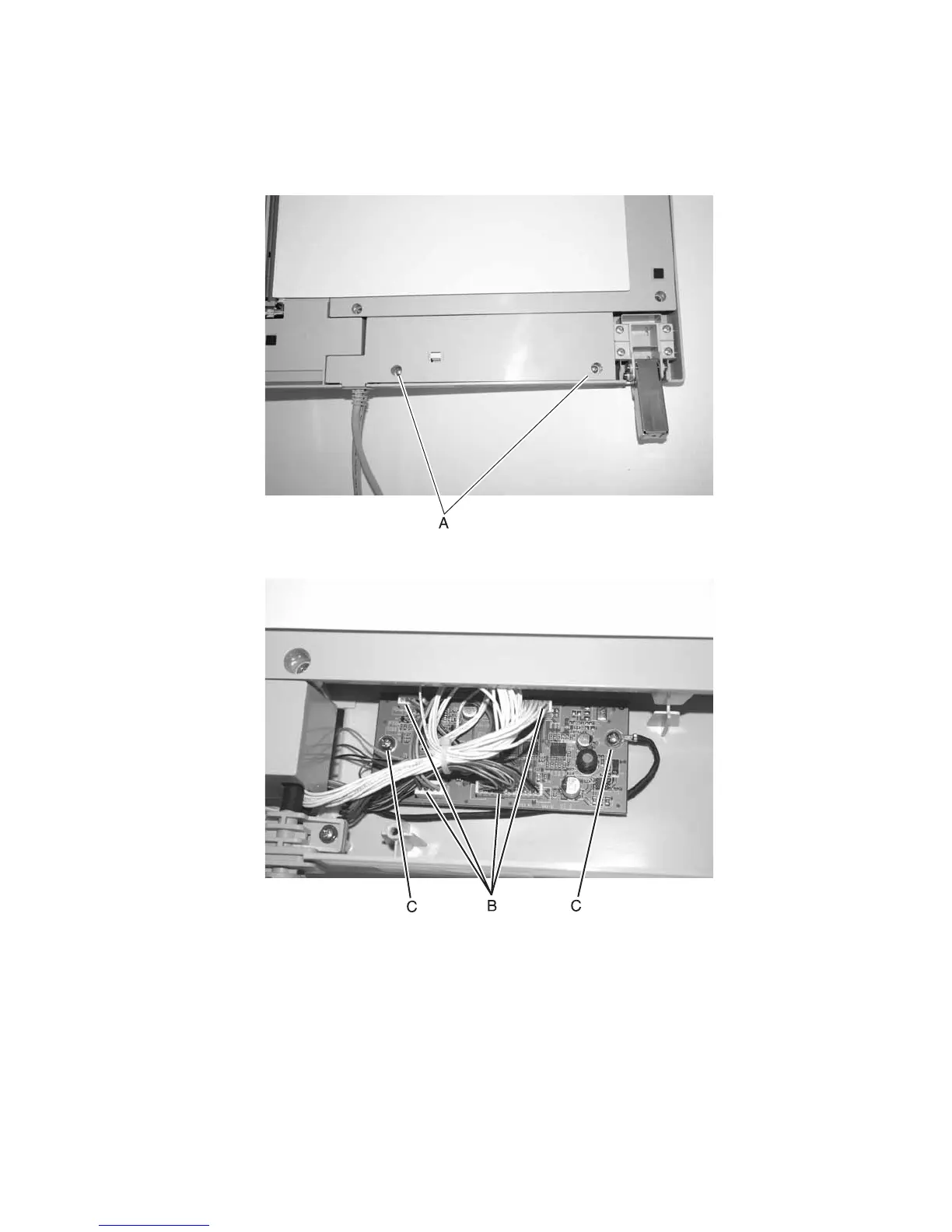

2. Remove the two screws (A), and remove the cover.
3. Remove the four cables (B).
4. Remove the two screws (C).
5. Remove the board.
