Lexmark 4036-307 - ADF Upper Cover Removal; ADF Lamp Removal

4-8 Service Manual
4036-307, -308

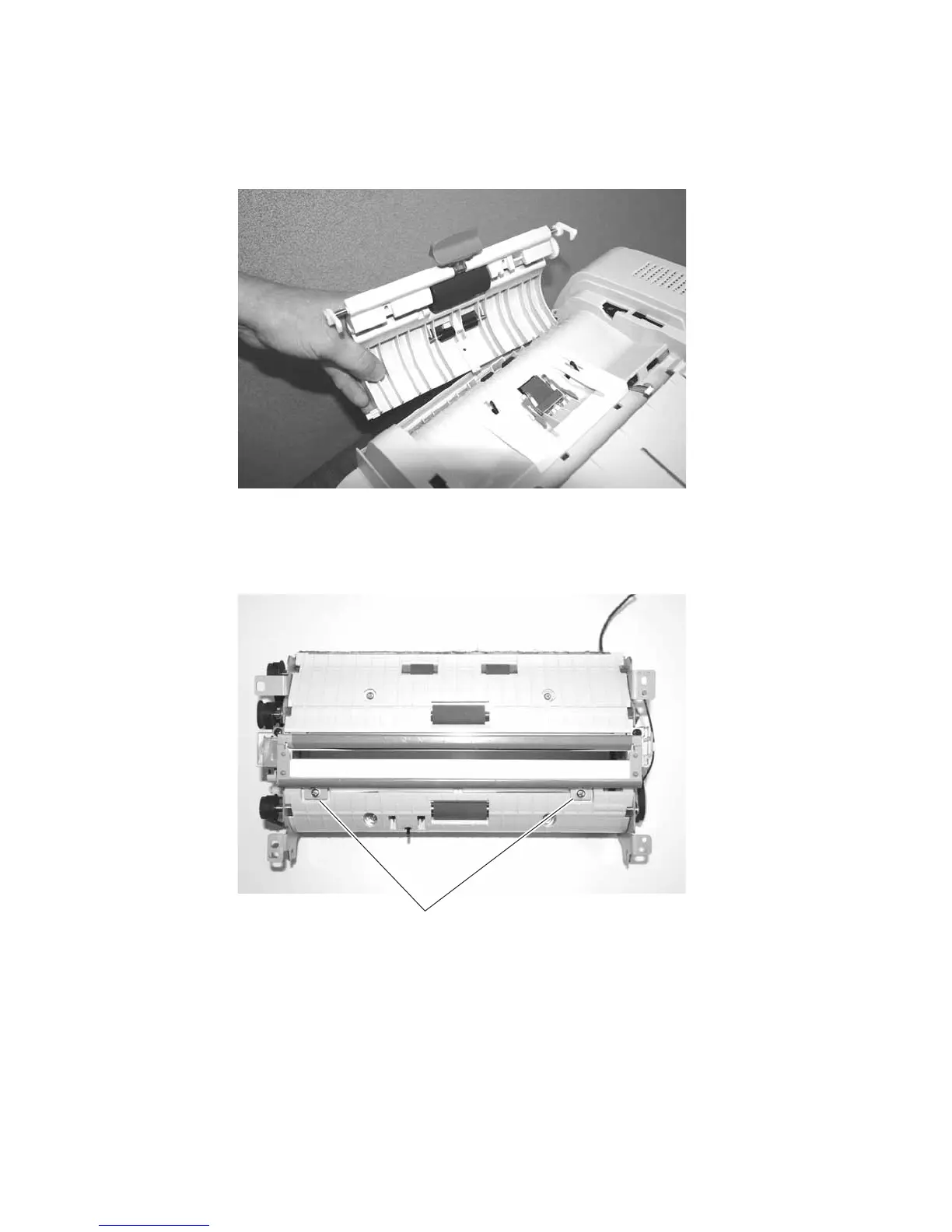

ADF upper cover removal
1. Remove the ADF outer cover. See “ADF outer cover removal” on page 4-7.
2. Pivot the ADF upper cover to remove.
ADF lamp removal
1. Remove the paper feed assembly. See “Paper feed assembly removal” on page 4-16.
2. Turn the paper feed assembly over, and remove the two screws (A).
A
