4-20 Service Manual
4036-307, -308

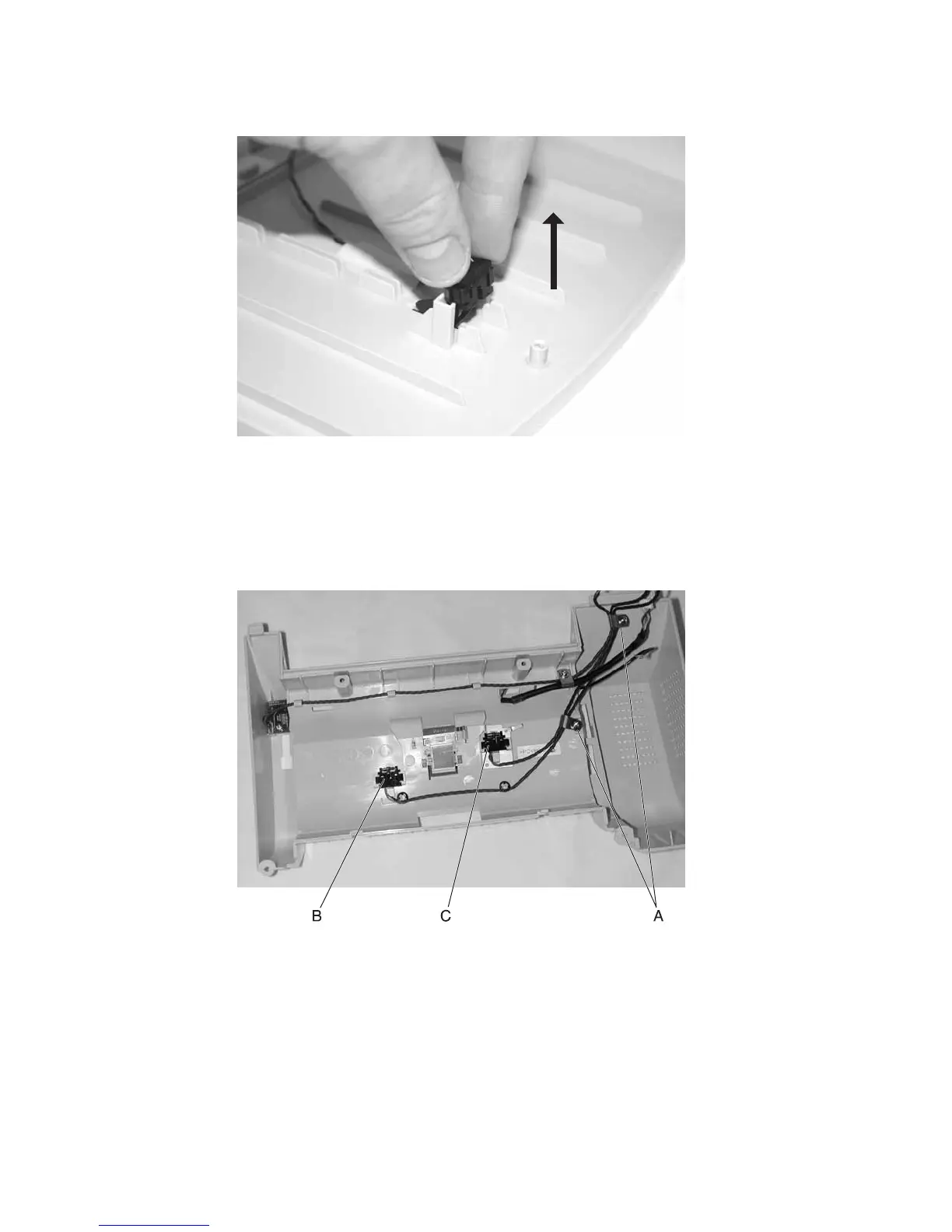

5. Pull the sensor up to remove it from the document input tray.
Paper present and paper feed 1 sensors removal
1. Remove the ADF lower cover. See “ADF lower cover removal” on page 4-4.
2. Remove the two screws (A).
3. Remove the paper present sensor (B) by lifting up.
4. Remove the paper feed 1 sensor (C) by lifting up.
