Repair information 4-13
4036-307, -308

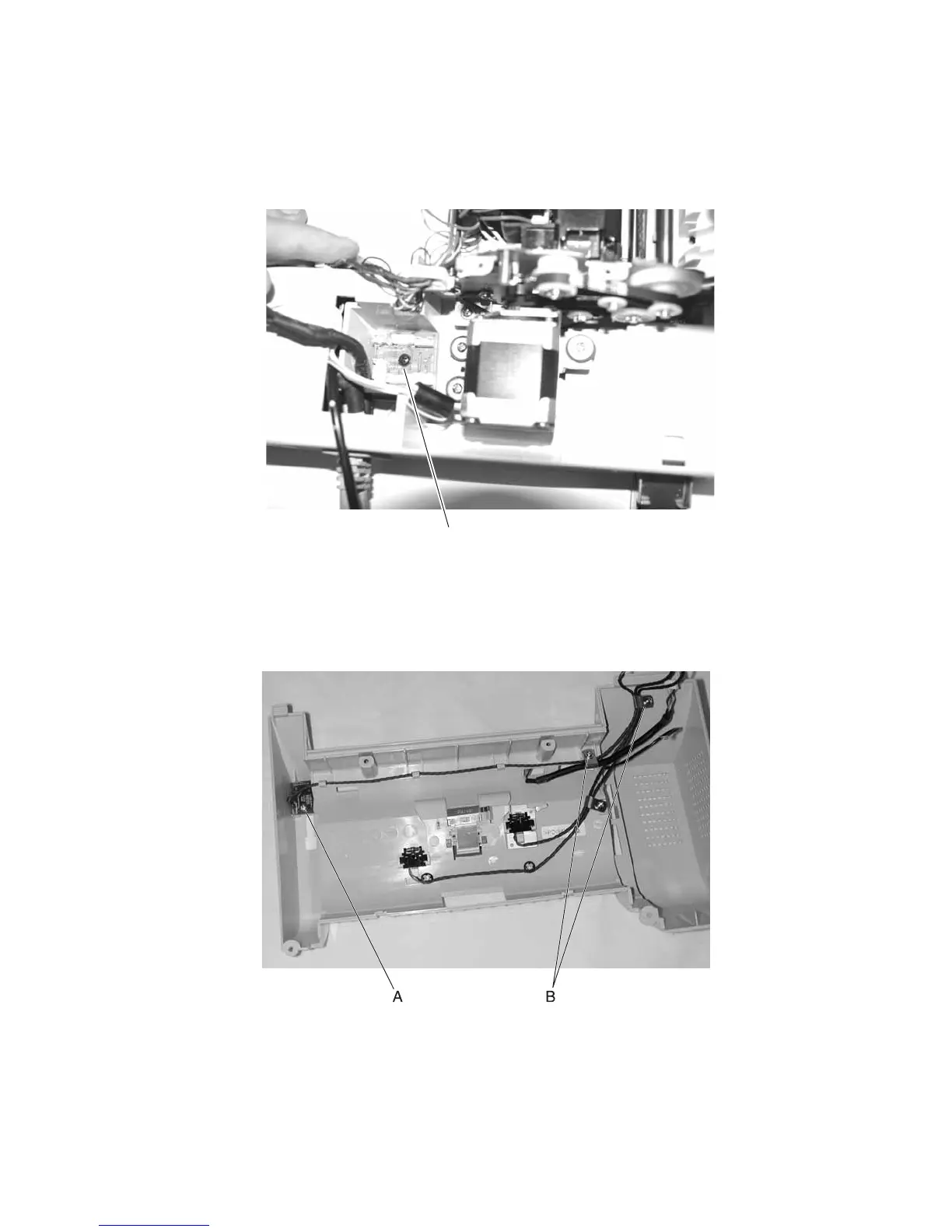

ADF sensor board removal
1. Remove the ADF lower cover. See “ADF lower cover removal” on page 4-4.
2. Disconnect the cables from the ADF motor sensor board.
3. Remove the screw (A).
4. Remove the ADF sensor board.
ADF upper cover sensor removal
1. Remove the ADF lower cover. See “ADF lower cover removal” on page 4-4.
2. Remove the screw (A) and the two screws (B).
3. Remove the ADF upper cover sensor.
A
