Document cover sensor removal

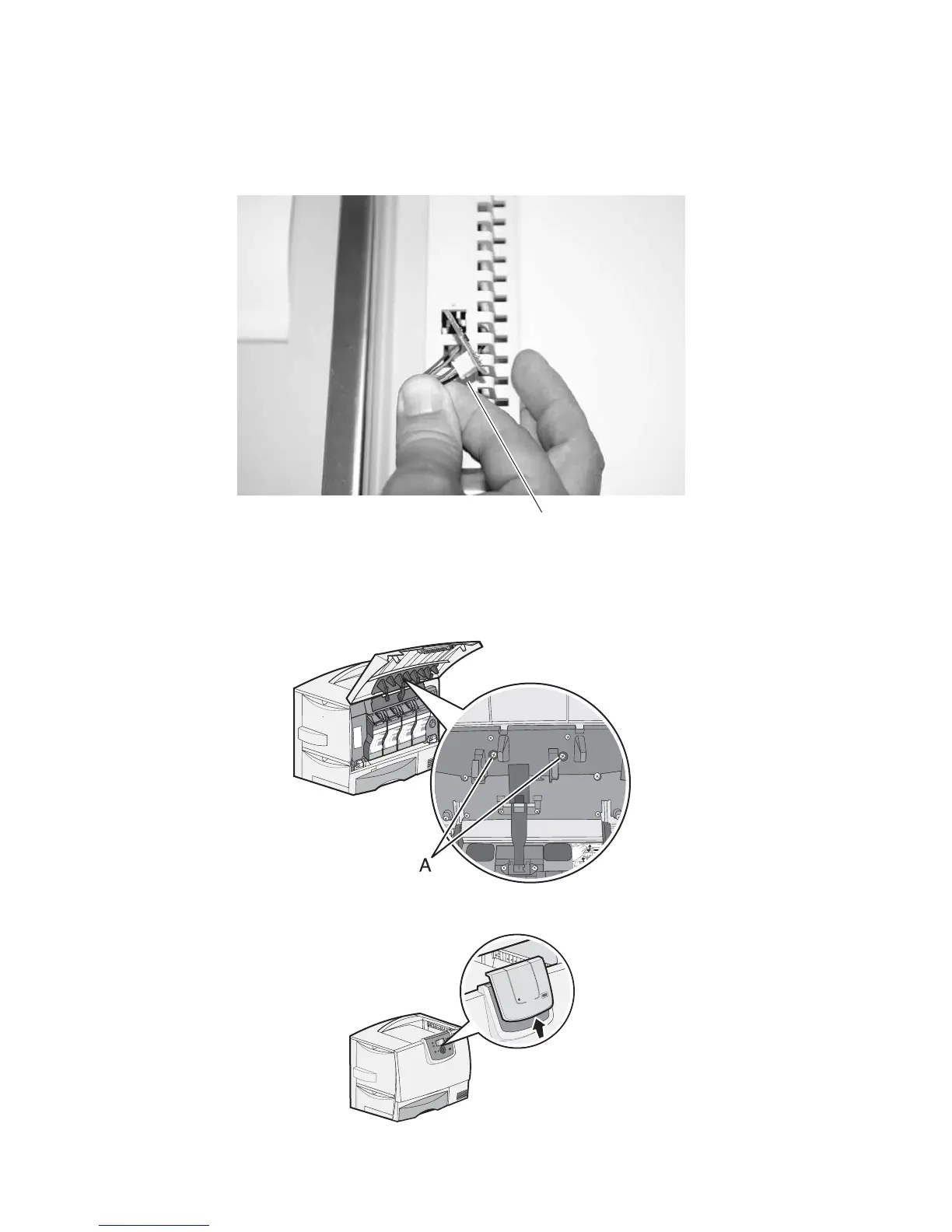

1. Remove the flatbed with glass cover. See “Flatbed cover with glass removal” on page 4-28.
2. Lift the document cover sensor board, and remove the cable (A).
C77X printer operator panel cover removal
1. Open the front door.
2. Remove the two operator panel cover retaining screws (A).
3. Close the front door.
4. Remove the operator panel cover by pushing up.
