4-16 Service Manual
4036-307, -308
Paper feed assembly removal
1. Remove the ADF upper cover. See “ADF upper cover removal” on page 4-8.
2. Remove the ADF optical unit. See “ADF optical unit removal” on page 4-12.
3. Remove the paper feed motor. See “Paper feed motor removal” on page 4-17.

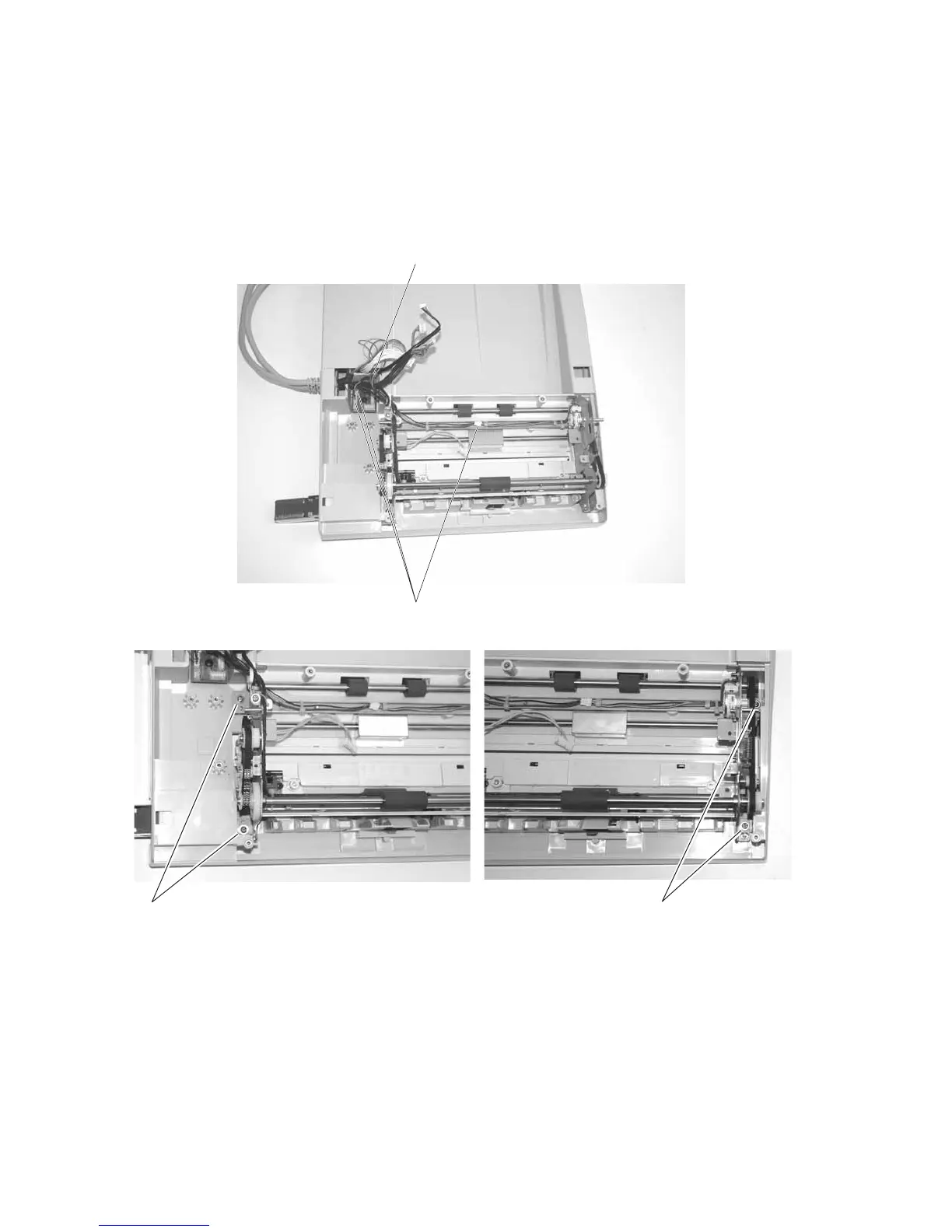

4. Remove the ground wire screw (A).
5. Unplug the three cables (B).
6. Remove the four screws (C).
7. Lift the paper feed assembly from the frame.
Note: Run registration if you are installing a new paper feed assembly. See “Configuration menu (CONFIG
MENU)” on page 3-6.
A
B
C
C
