Lexmark 4036-307 - Scanner Cushion Removal

4-22 Service Manual
4036-307, -308
Scanner cushion removal
1. Remove the document cover assembly. See “Document cover assembly removal” on page 4-14.

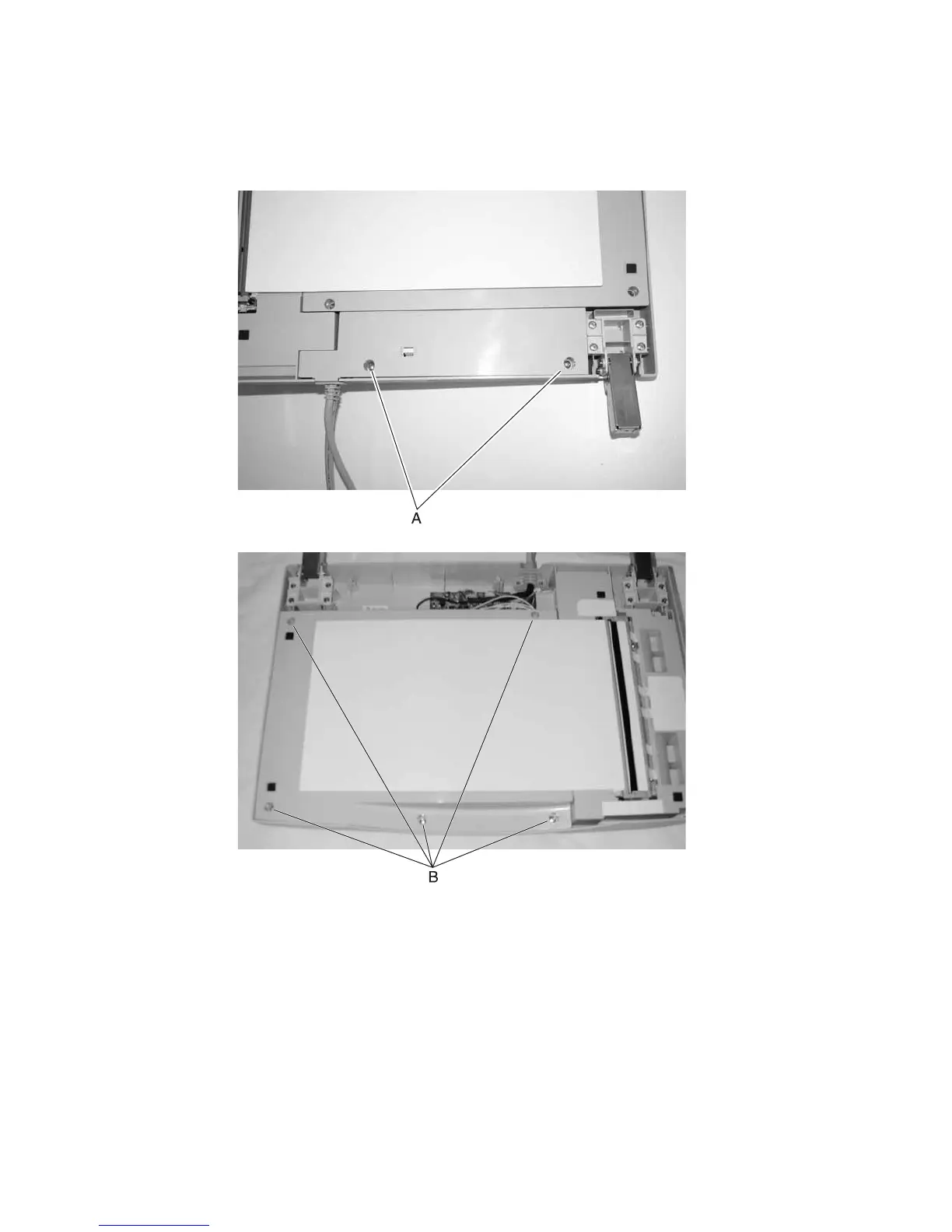

2. Remove the two screws (A), and remove the cover.
3. Remove the five screws (B).
4. Lift the scanner cushion.
