Lexmark 4036-307 - Connectors; Scanner Control Board

Connector locations 5-3
4036-307, -308
Connectors

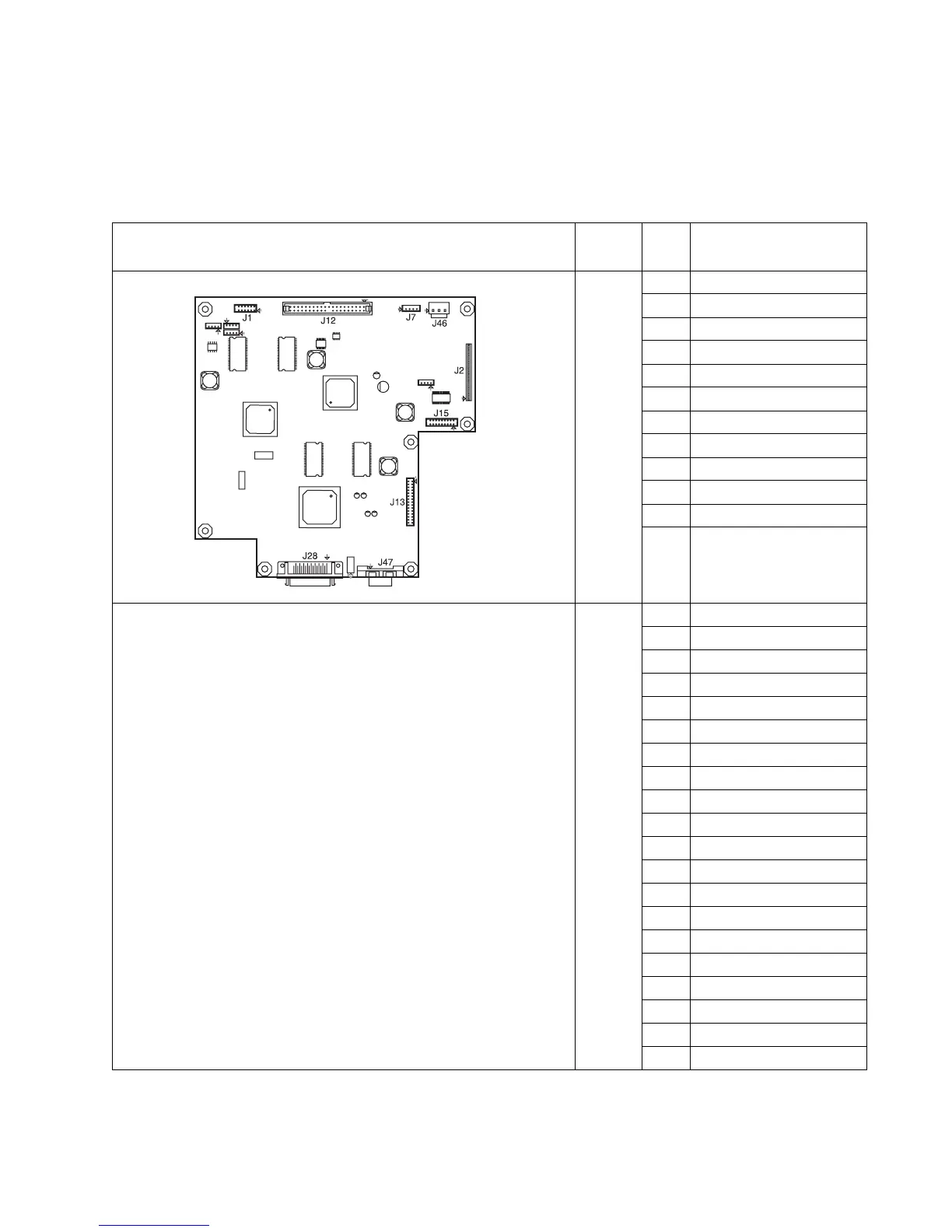

Scanner control board
Scanner control board
Conn-
ector
Pin
no.
Signal
J1 1 MDC_DET_R
2 PROGRAM_CTRL_R
3TOP_FB_CN
4 TOP_ADF_CN
5GND
6 MDC_RXD_CN
7 MDC_TXD_CN
8GND
9 ADF_PAP_PRE S_CN
10 FB_COV_CLOSED_CN
11 GND
12 MDC_RST_NR
J2 1 FB_LAMP_ON_R
2 FB_POWER_SAVER_R
3 24 V_LAMP_UI
4 24 V_LAMP_UI
5 24 V_LAMP_UI
6 FB_CCD_BW_SEL_R
7GND
8 FB_CCD_TRANSFER
9GND
10 FB_CCD_PHASE1_R
11 GND
12 FB_CCD_RESET_R
13 GND
14 FB_CCD_CLAMP_R
15 GND
16 FB_AFE_CLK_R
17 GND
18 FB_AFE_RSMP_R
19 GND
20 FB_AFE_VSMP_R
