Lexmark 4036-307 - Page 72

4-10 Service Manual
4036-307, -308

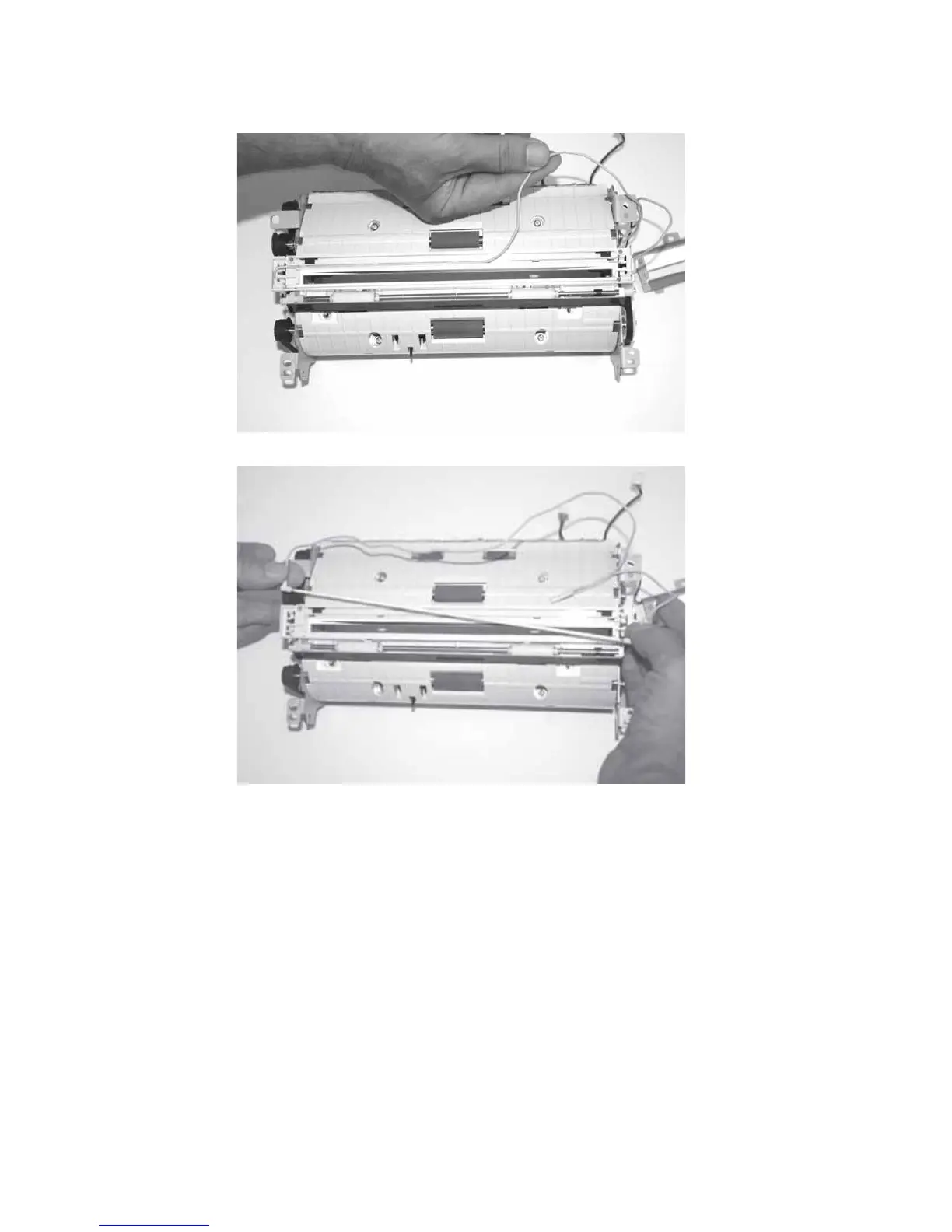

7. Remove the lamp cable from the channel.
8. Lift the lamp by the ceramic ends and remove. Do not touch the glass.
Note: Run registration if you are installing a new ADF lamp. See “Configuration menu (CONFIG MENU)” on
page 3-6.
