8-12
Windows Software Reference (Single Chamber Mode)
The voltage ouput from the input devices connected to the Auxiliary Sensor
Interface can be viewed in the Main Window.
Repeat

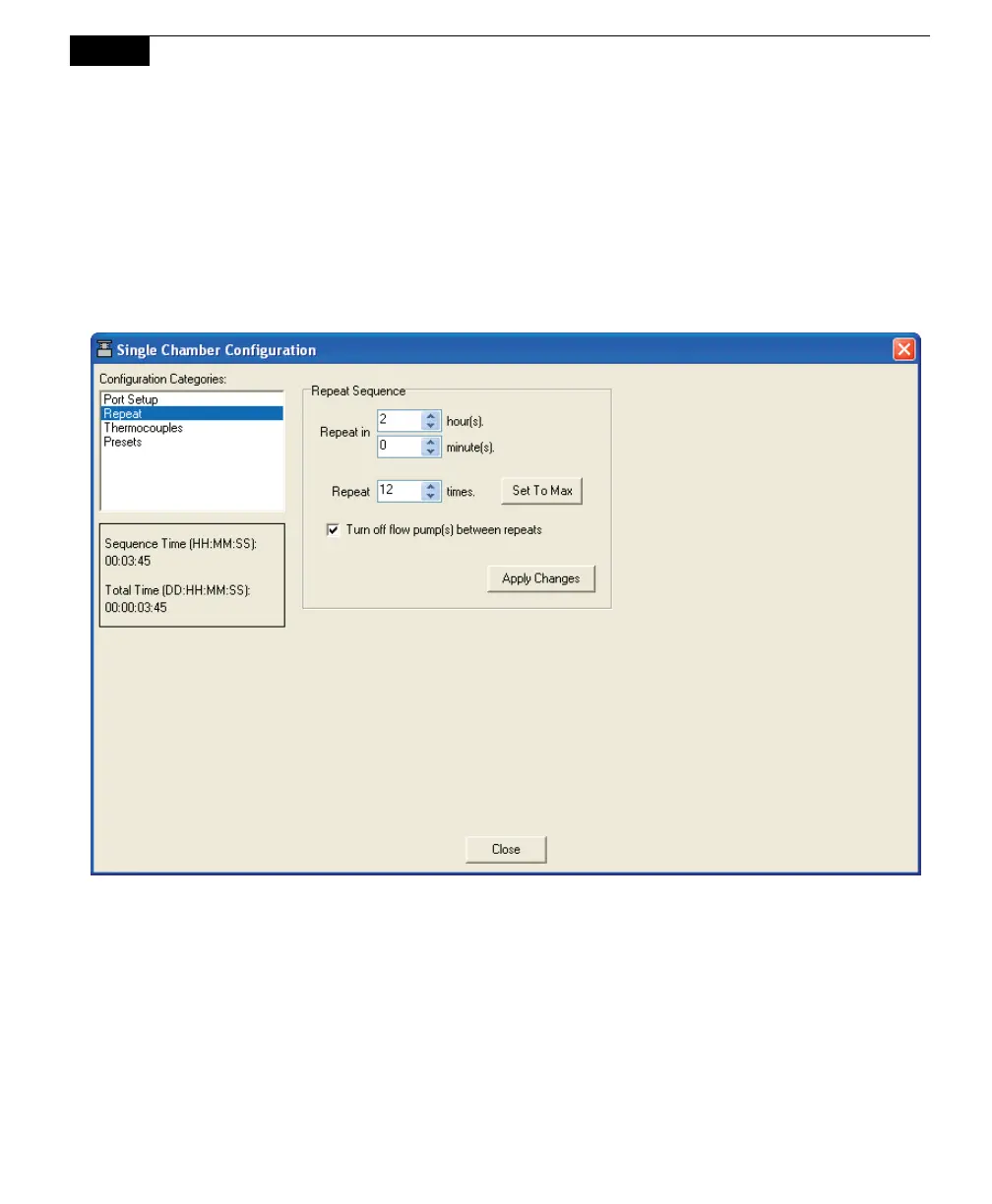

The Repeat Measurement page allows you to repeat the defined protocol at a
regular clock interval. These functions are particularly useful when making long
term, unattended measurements.
For example, you could specify a 90 second Obs. Length, 45 second Deadband,
Pre-purge of 2 minutes, and Obs. Count of 3. This protocol could then be repeated
every hour for 240 times (10 days). The resulting data set would include 240
measurements, with each measurement consisting of three 90-second observations
on the chosen port. The maximum number of repeats is 12000 (Set To Max
button).
You can elect to turn off the flow pump between repeated measurements to
conserve battery life and extend the life of the pump by enabling the check box.
