Using the LI-8150 Multiplexer
10-33
Click here to
open the list of variables
that can be displayed...
The flag indicates an error
has occurred; click on the
flag to view the error log.
or double-click inside the field to open the list.

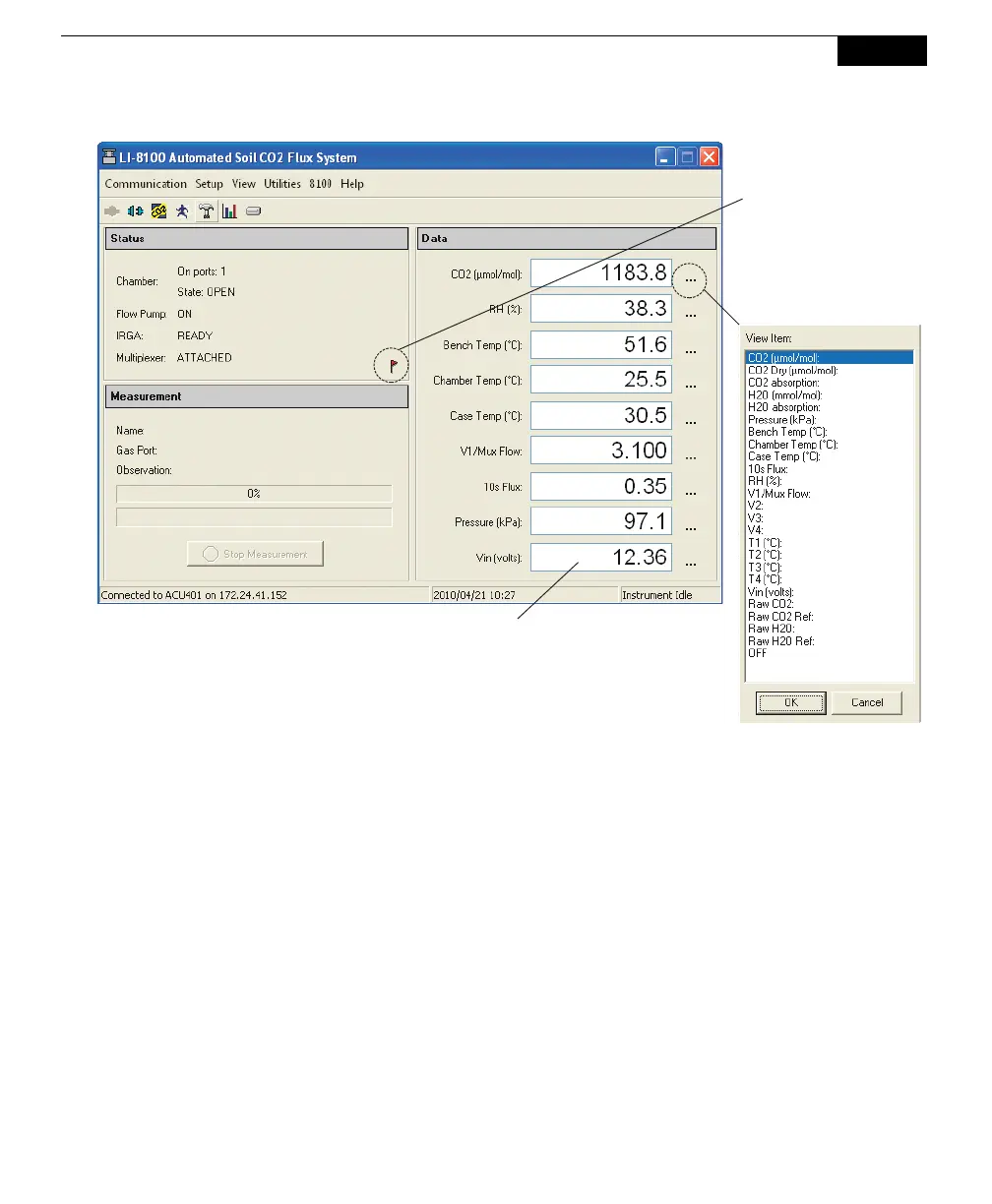

The Main window displays selected data variables on the right side of the window,
as well as the progress of the current measurement and the status of various
LI-8100A and LI-8150 parameters. If the Multiplexer is detected, the status window
will display ATTACHED; detected chambers will also be displayed on their
corresponding ports. You can change the variables that you want to monitor,
displayed on the right side of the window by clicking on the dots next to any
variable and selecting a different one from the pop-up menu (above). There are
also five menus used to configure the LI-8100A, perform zero and span
calibrations, and set up the parameters for recording data.
NOTE: You can also double-click inside the data fields to open the pop-up menu,
and then double-click on the desired variable to make it active.
Using the Toolbar
The toolbar in the Main window contains shortcuts for some of the commonly used
menu items:
To Next Page
