Using the LI-8150 Multiplexer
10-11

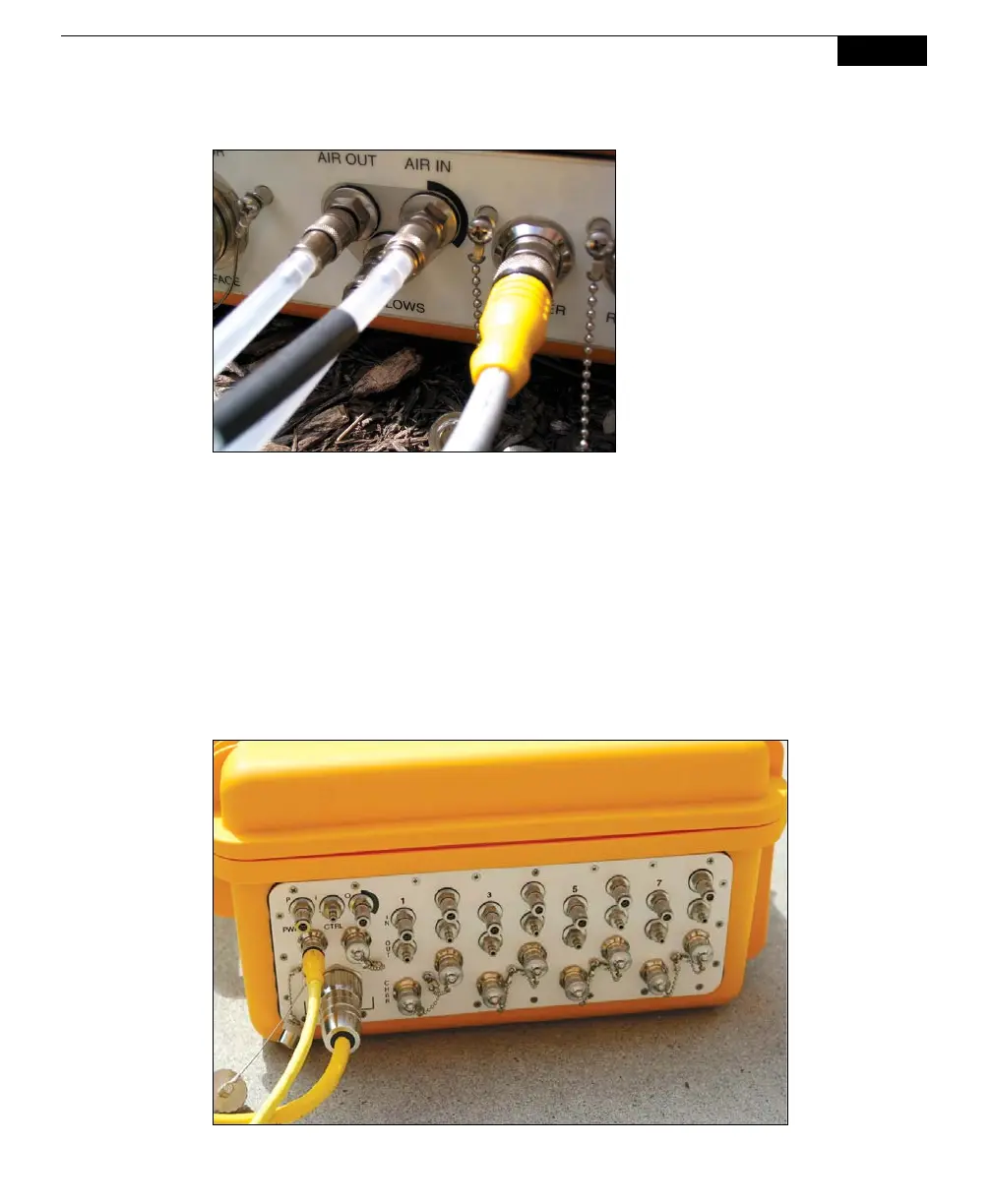

Figure 10-5. Hose connections to LI-8100A Analyzer
Control Unit.
Note that the fittings on the
side panel have fine threads.
Make sure there is no debris
on the fittings before
attaching the connectors, as
the threads can be damaged.
Cover the connectors with the
attached connector dust caps
whenever the connectors are
not being used.
The yellow circular connector bundled with the air hoses is attached to the
Chamber fitting. Note that this fitting is indexed; you may have to rotate it until it
slips into place before tightening.
LI-8150
Attach the large bulkhead connector to the port labeled LI-8100A. Attach one end
of the power cable to the connector labeled PWR (Figure 10-6). Attach the round
control cable to the connector labeled CTRL.
Figure 10-6. Attach the bulkhead connector and power cable.
