Apple iOS Software Reference (Single Chamber Mode)
9-3

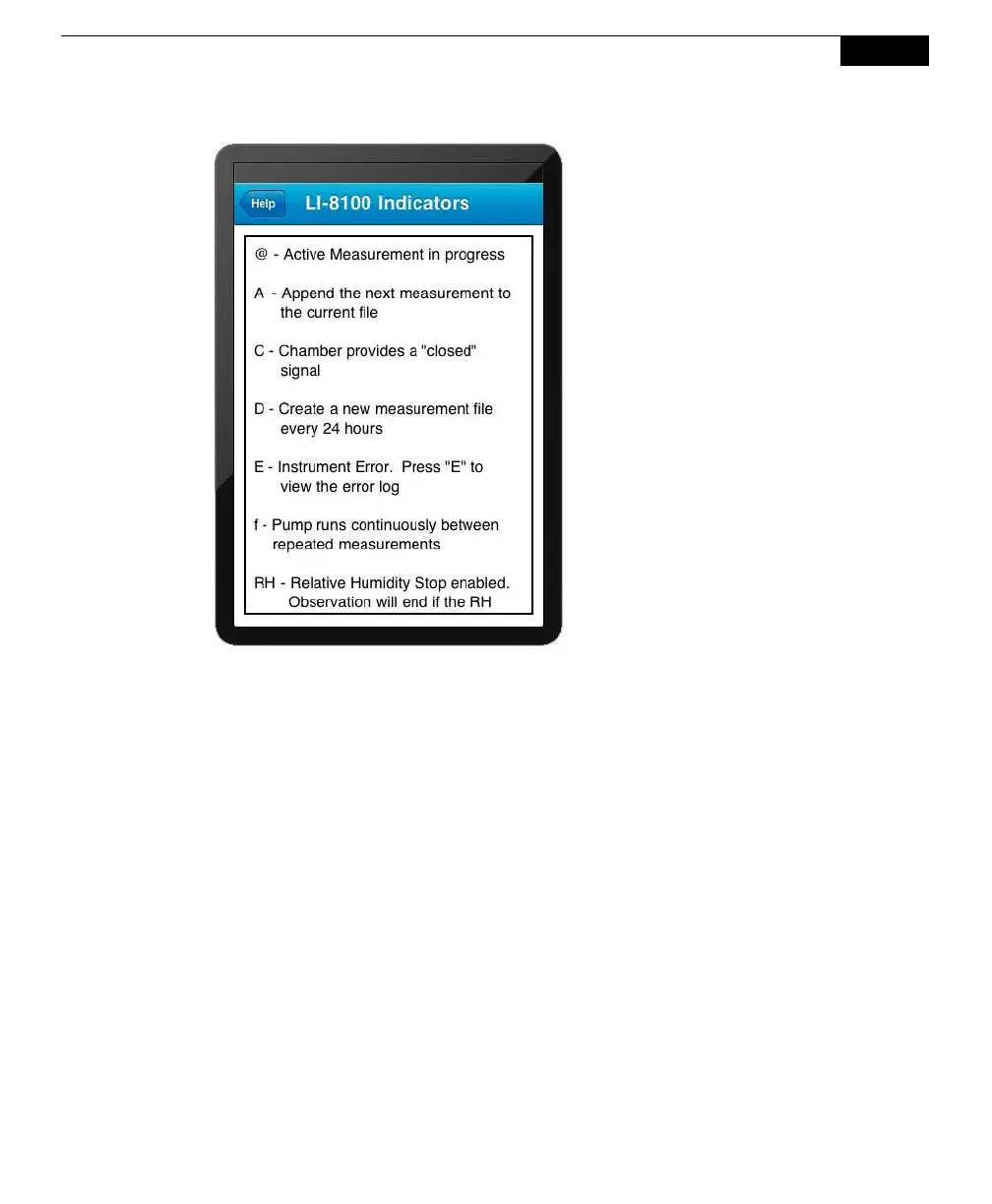

Descriptions of most terms used in the LI-8100APP can be viewed by tapping on
the text of the term for which you want to view help.
The Setup Menu
Measurement Presets
Opens the Measurement Presets page, where you can define up to 19 different
configurations containing measurement setup parameters. These parameters can
be saved and recalled for later use, without the need to redefine experimental
parameters before each experiment. For example, individual parameters for
different types of soil chambers can be defined (e.g. 10 cm and 20 cm survey
chambers), and saved as unique measurement presets; switching between
chambers can then be easily done by simply loading the appropriate preset and
starting the measurement.
Each preset contains the experimental parameters defined on the Measurement
Protocol page, as well as the Area, Volumes and Flow Rate, Start Measurement,
and Instrument Settings pages.
