Apple iOS Software Reference (Single Chamber Mode)

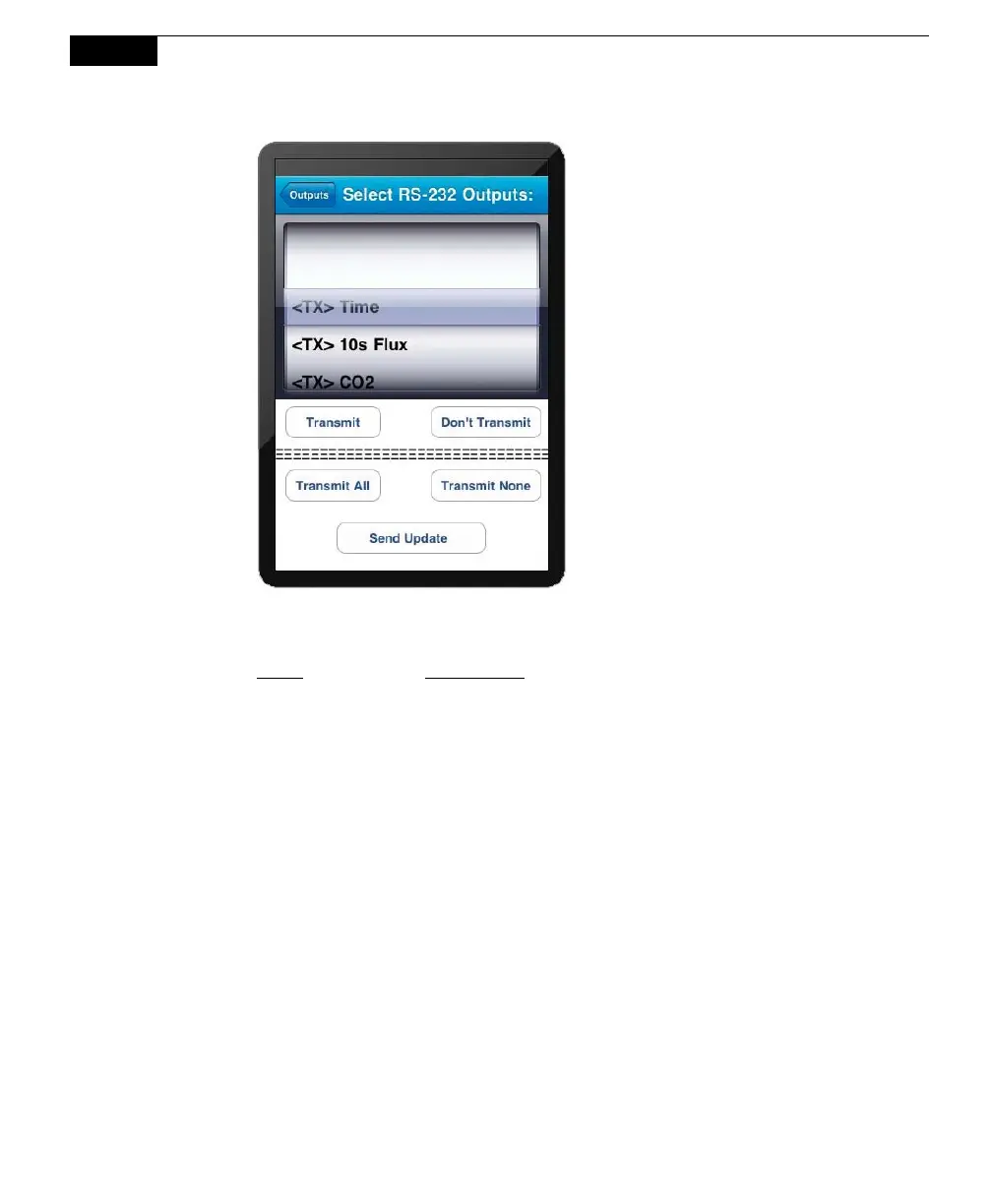

Tap
Transmit to enable the selected
data value; a <TX> notation is placed
in front of the data value. Tap
Dont
Transmit
to disable the selected data
value.
Tap
Transmit All to enable all data
values, or
Transmit None to disable all
data values.
Tap
Send Update to send the selected
data fields to the LI-8100A for
implementation.
The data values that can be output are as follows:
Label
Description
Time Instrument time.
10s Flux Ten second running estimate of soil CO
2
flux rate.
CO2 Chamber CO
2
concentration in μmol/mol.
CO2 Dry Chamber CO
2
concentration, corrected for water vapor
dilution, in μmol/mol.
H2O Chamber water vapor concentration, in mmol/mol.
Pressure Atmospheric pressure in the optical bench (kPa).
°C (Ch) Air temperature inside the soil chamber.
°C (Bn) Temperature of the optical bench.
°C (Case) Air temperature inside the Analyzer Control Unit case.
H2O ABS Absorption of photons in the optical bench due to the
presence of water vapor.
CO2 ABS Absorption of photons in the optical bench due to the
presence of CO
2
.
Volts In Input (battery) voltage.
Raw CO2 CO
2
raw signal (sample analyzer).
Raw CO2 Ref CO
2
raw signal (reference analyzer).
Raw H2O H
2
O raw signal (sample analyzer).
Raw H2O Ref H
2
O raw signal (reference analyzer).
To Next Page
