Using the LI-8150 Multiplexer
4 N/C Grey
5 Unreg Out (50mA) Red
6 Switched +5V Out (30mA) Yellow
7 0v – 5v In - Green
8 Gnd White
Plug = 8100-104/C V2-V4 Connector
Socket = 392-08577 Cable end

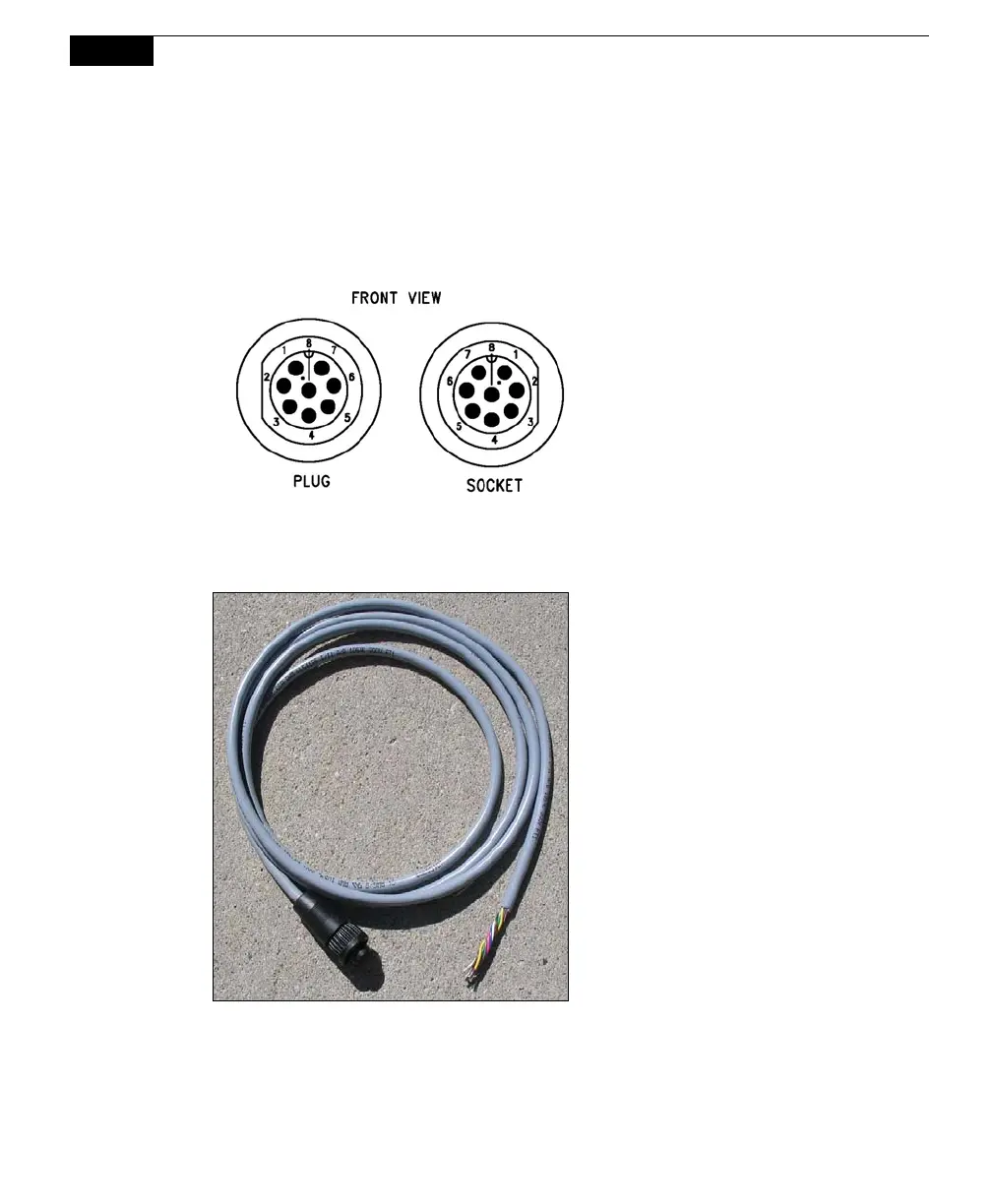

Figure 10-9. A plug with bare wire leads (p/n 392-08577) can be used to attach sensors
from other manufacturers to the 8100-104/C Long-Term Chambers.
Note that when the Multiplexer is attached to the LI-8100A, the Auxiliary Sensor
Interface cannot be attached to the LI-8100A; thus, thermocouples cannot be
measured without an external measurement device, as all measurement channels
