2-2
Initial Setup

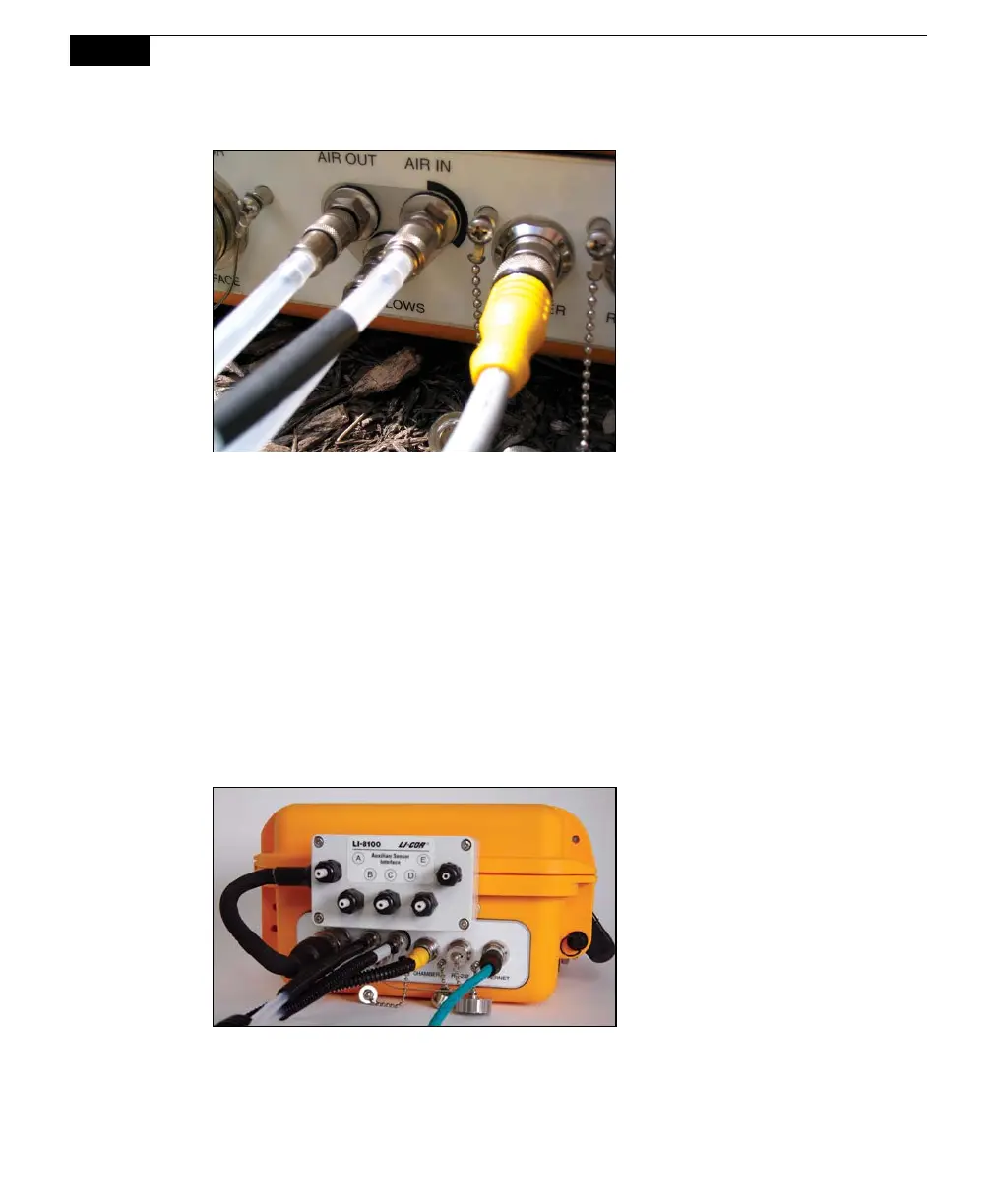

Figure 2-2. Chamber hose connections.
Note that the fittings on the
side panel have fine threads.
Make sure there is no debris
on the fittings before attaching
the connectors, as the threads
can be easily damaged.
Cover the connectors with the
attached connector dust caps
whenever the connectors are
not being used.
Note that the Bellows port is active only with the Survey Chambers. If you are
using a Long-Term chamber, only the Air In and Air Out fittings are active. When
using a Long-Term Chamber the Bellows port should be plugged with p/n 9981-
118, found in the spare parts kit.
The yellow circular connector bundled with the air hoses is attached to the
Chamber fitting. Note that this fitting is indexed; you may have to rotate it until it
slips into place before tightening.
When all of the cables are connected, the side panel should appear similar to that
shown below in Figure 2-3.
Figure 2-3. Proper cable connections.
