Using the LI-8150 Multiplexer
10-85

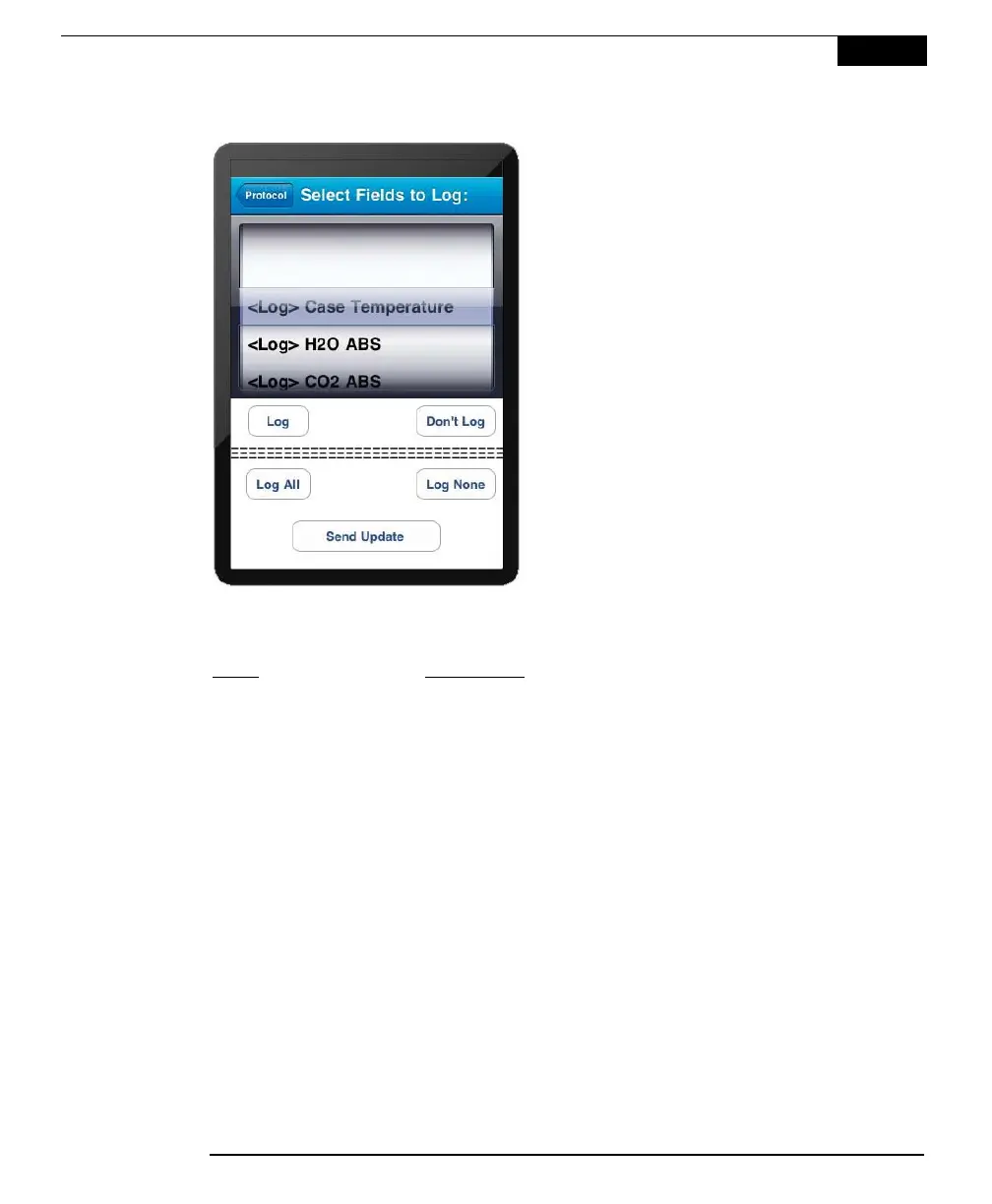

Tap
Log to enable the selected data
value; a <Log> notation is placed in
front of the data value. Tap
Dont Log
to disable the selected data value.
Tap
Log All to enable all data values,
or
Log None to disable all data values.
Tap
Send Update to send the selected
data fields to the LI-8100A for
implementation.
The additional data values that can be logged are as follows:
Label
Description
Case Temperature (°C) Air temperature inside the Analyzer Control Unit case.
H2O ABS Absorption of photons in the optical bench due to the
presence of water vapor.
CO2 ABS Absorption of photons in the optical bench due to the
presence of CO
2
.
Volts In Input (battery) voltage.
RH% Relative humidity inside the soil chamber.
Raw CO
2
raw signal.
Hour Time of day.
DOY Day of the year.
V1 Aux Input at voltage channel 1 (soil moisture).
V2 Aux Input at voltage channel 2 (soil moisture).
V3 Aux Input at voltage channel 3 (soil moisture).
V4 Aux Input at voltage channel 4 (soil moisture).
T1 Aux Input at thermocouple channel 1, in degrees C.
T2 Aux Input at thermocouple channel 2, in degrees C.
T3 Aux Input at thermocouple channel 3, in degrees C.
T4 Aux Input at thermocouple channel 4, in degrees C.
Flux Computation Automatically computes flux rate after each measurement.
GPS Latitude Decimal degrees, hemisphere (+) north or (-) south
