LI-COR LI-8100A - Page 331

12-4
Maintenance

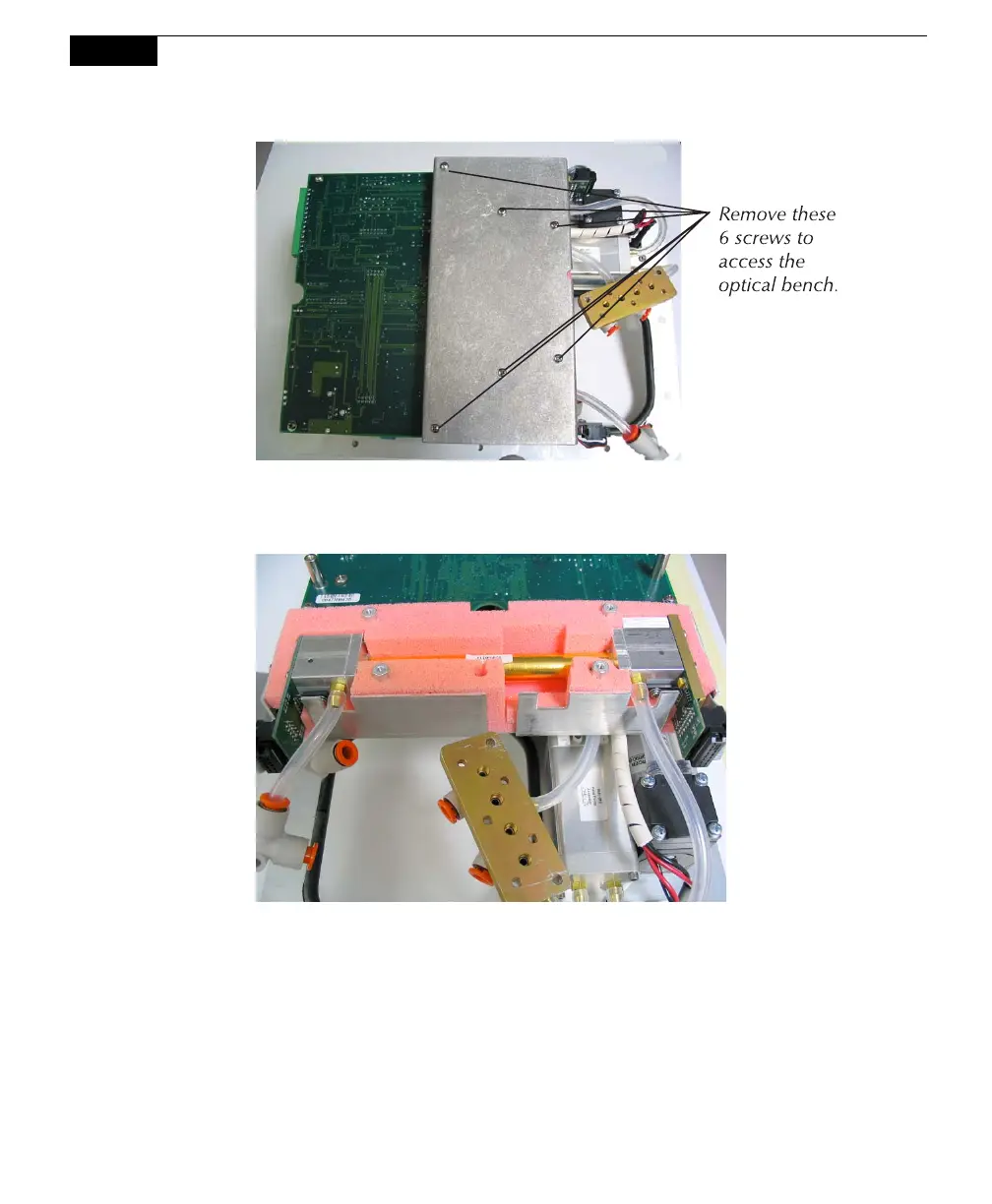

8. Remove the six screws from the optical bench cover, as shown above. The
optical bench will appear as shown below.
9. Leave the hoses connected to the optical bench, and lift the bench out of the
foam casing.
