12-18
Maintenance

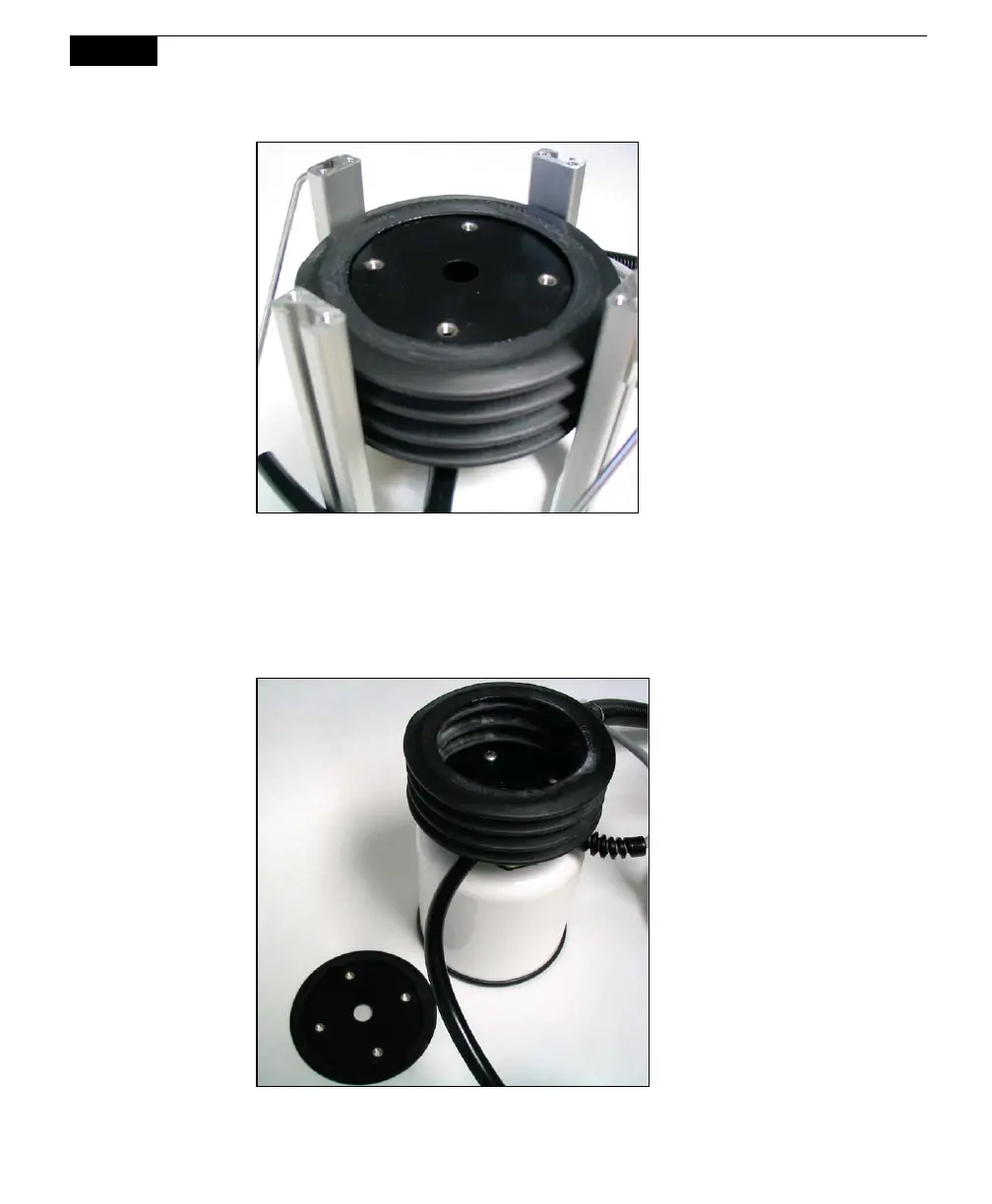

Insert your finger between the bellows and the black plate and pry the plate
out. If necessary, you can lift the entire chamber out of the strut assembly.
7. There are two more plates at the bottom of the bellows. Remove the four
screws from the base plates and remove the bellows.
8. The underside of the bellows appears as shown below.
To Next Page
