Maintenance
12-21

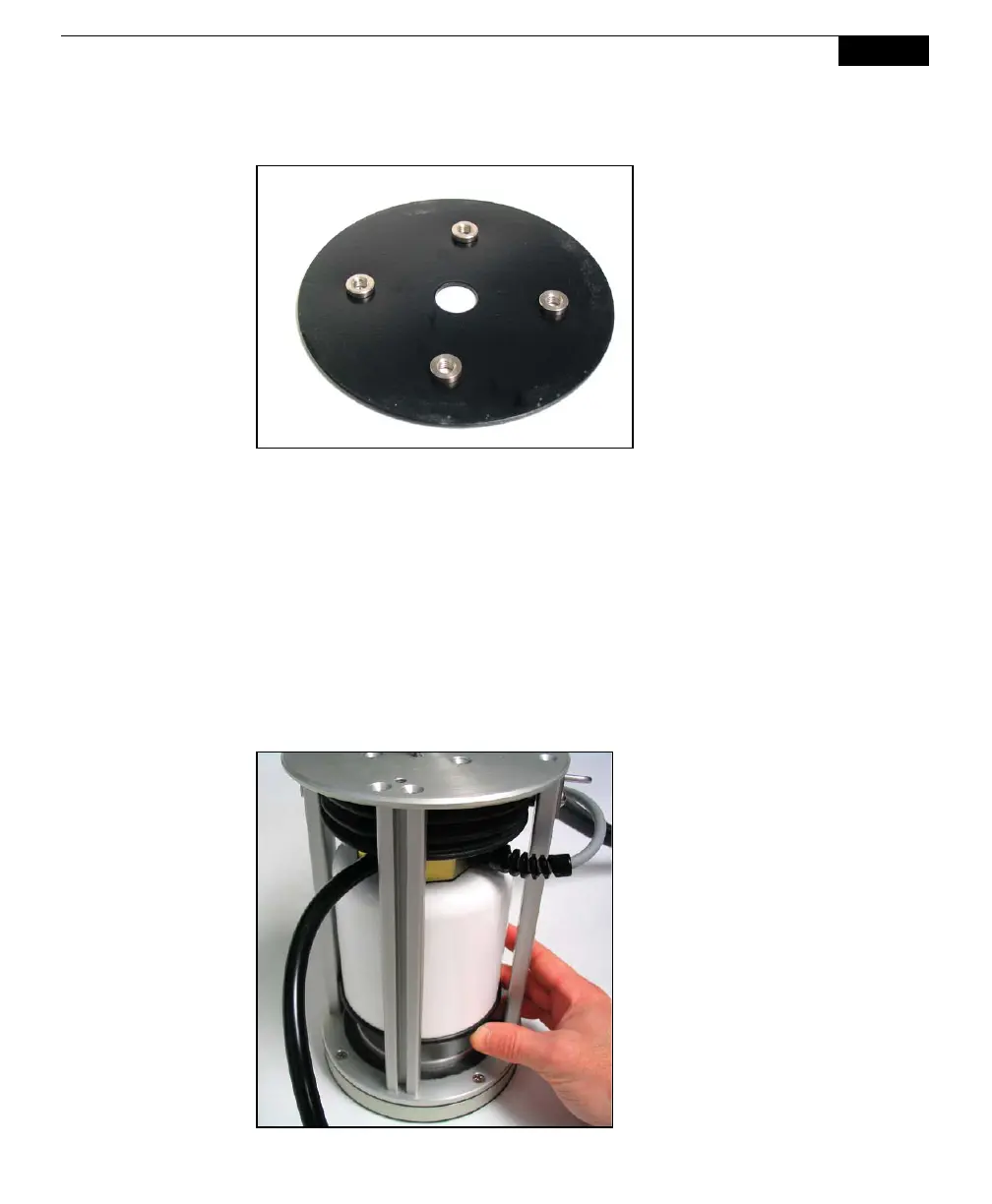

The screw inserts are on
the underside of the top
plate, and face
downward, into the
center of the bellows.
12. If the chamber was removed earlier, re-insert it into the strut assembly. Make
sure that the hoses are positioned between two of the struts with adequate
clearance. Place the chamber top plate on top of the struts, align the screw
holes, and secure the top plate to the struts with the eight screws removed in
Step 5.
13. The assembly should appear similar to that shown below. You now need to
attach the bellows to the chamber top plate. Lift up on the bottom of the
chamber to compress the bellows to verify placement and clearances, and
rotate slightly until the four screw holes on the chamber top plate and the
bellows top plate align.
