12-44
Maintenance
Remove the 4 screws and
washers from the shaft seal
5. Remove the shaft seal assembly from the drive column.

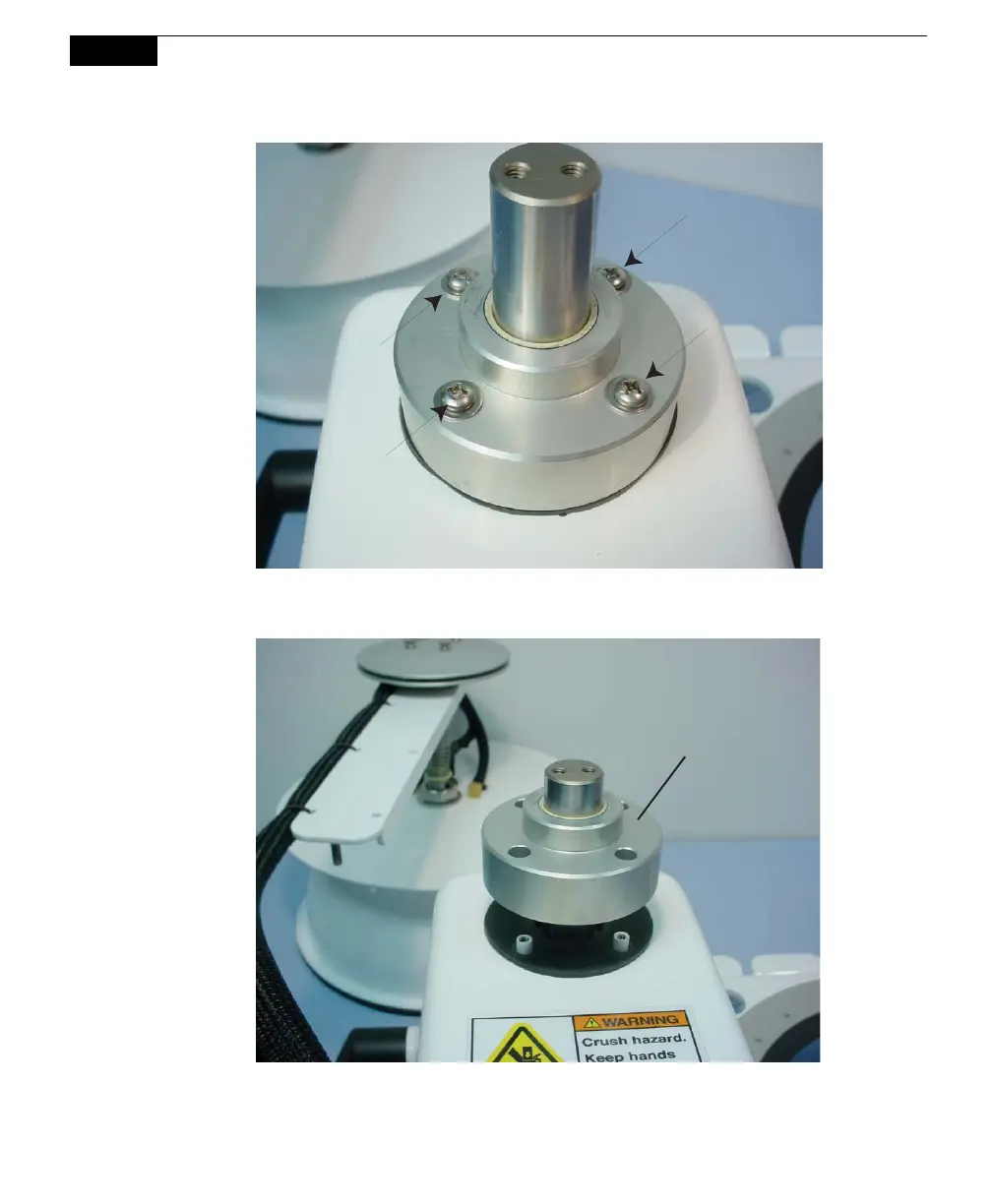

Shaft seal
assembly
6. Replace the support gasket (p/n 6581-163) if needed. Install the new shaft
seal assembly on the shaft; carefully press the assembly past the O-ring.
Simultaneously, press and twist the assembly to get past the main shaft seal.
