B Pin Assignments
The LI-8100A uses a round Turck connector on the side panel for RS-232 output.
An RS-232 cable (p/n 392-10587) with a round Turck connector and a DB-9
connector attaches to the LI-8100A RS-232 port. The pin assignments for the DB-9
connector on the 392-10587 cable are given below; note that not all pins are used
for communication between the LI-8100A and a computer. If you want to make a
custom cable for use with the LI-8100A, follow the list below for the proper
connections.

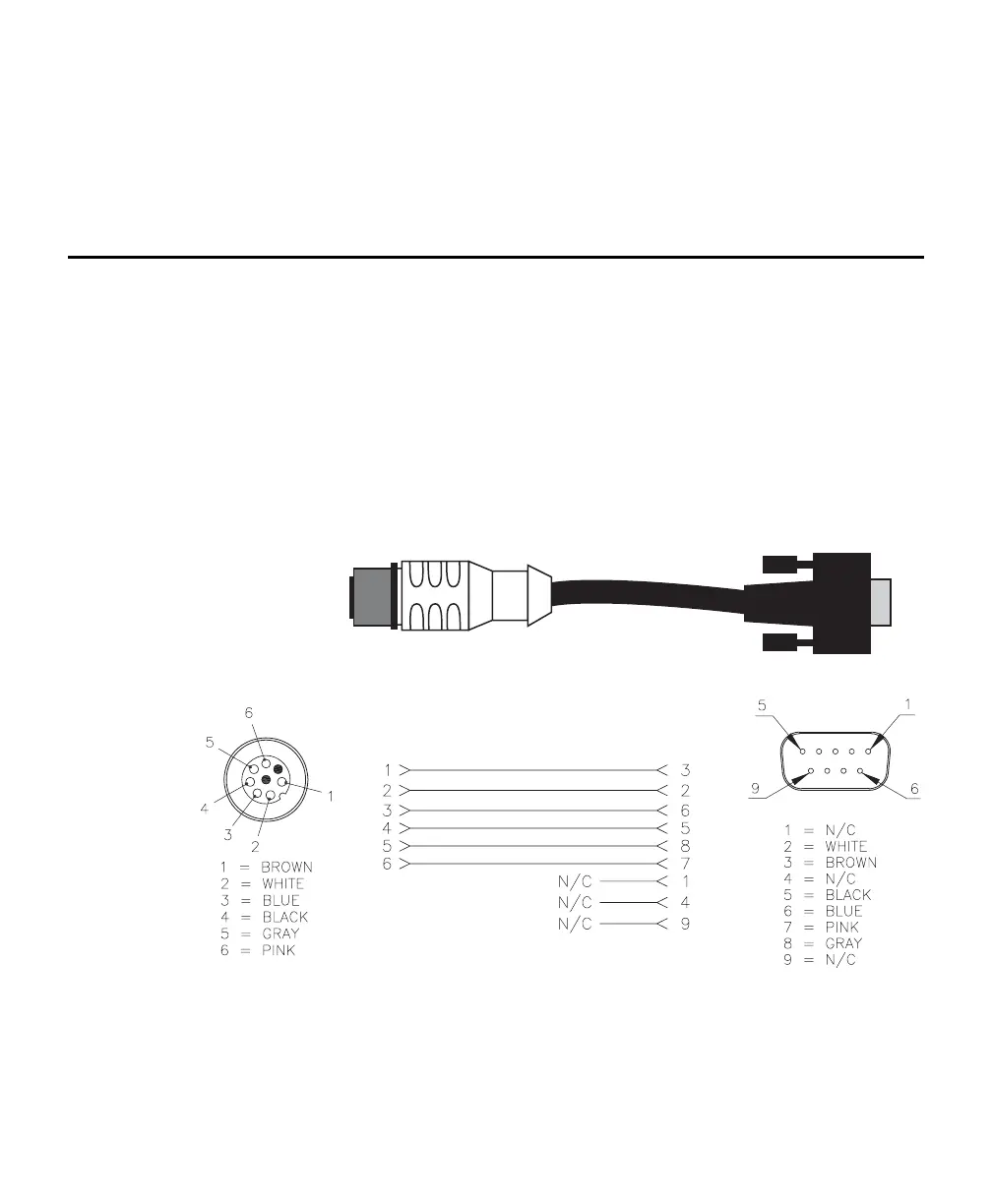

The 392-10587 RS-232 cable pin assignments are as follows:
To Analyzer
Control Unit
392-10587
