3-8

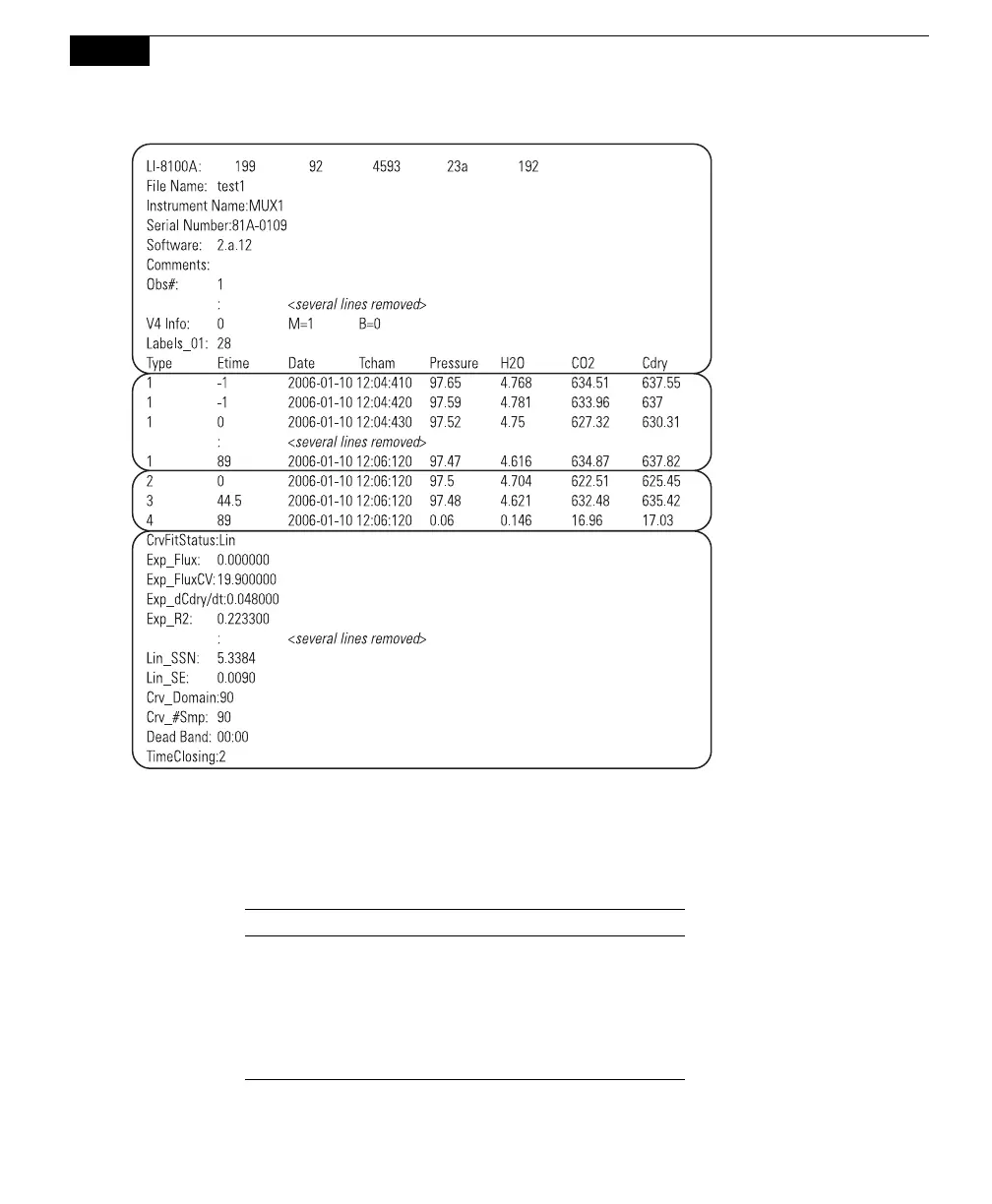

Measurement Quick Start
Header
Raw Records
Summary Records
Footer
Header - The lines from "LI-8100A" through the labels line.
Type - The first item in each record is called the Type, and it identifies the type of
record. The types are -1, 1, 2, 3, and 4.
Type Description
-1 Warning Record
1 Raw Record
2 Initial Value (regressed from first 10
seconds of ETime0 data)
3 Mean Value (of ETime0 data)
4 Range Value (of ETime0 data)
Raw Records - A record of Type = 1. These records represent measured data from
the time the chamber starts to close, to the time when it starts to open.
