 The following dialog is displayed:

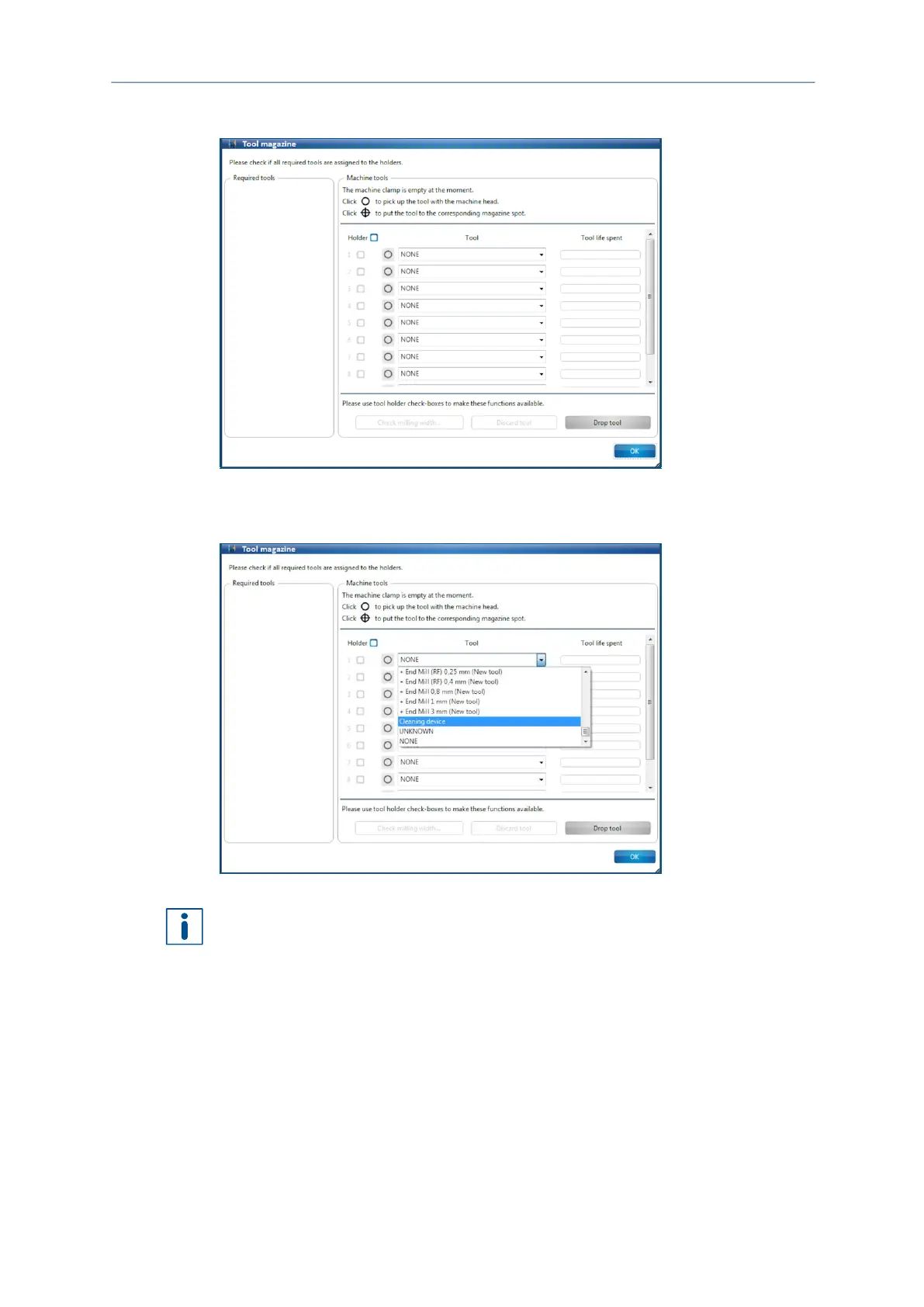

Fig. 93: Dialog Tool magazine
6. In the drop-down list Tool, assign the tool Cleaning device to the tool holder
position with the cleaning device.
Fig. 94: Selecting the tool Cleaning device
Ensure that the tool holder position indicated in the dialog Tool magazine corresponds
to the actual tool holder position on the processing table.
7. Click on [OK].
 The dialog is closed.

The cleaning device has been inserted.
