Operating the system
ProtoMat S64/S104
118/160
LPKF Laser & Electronics AG | V. 1.0
 The following dialog is displayed:

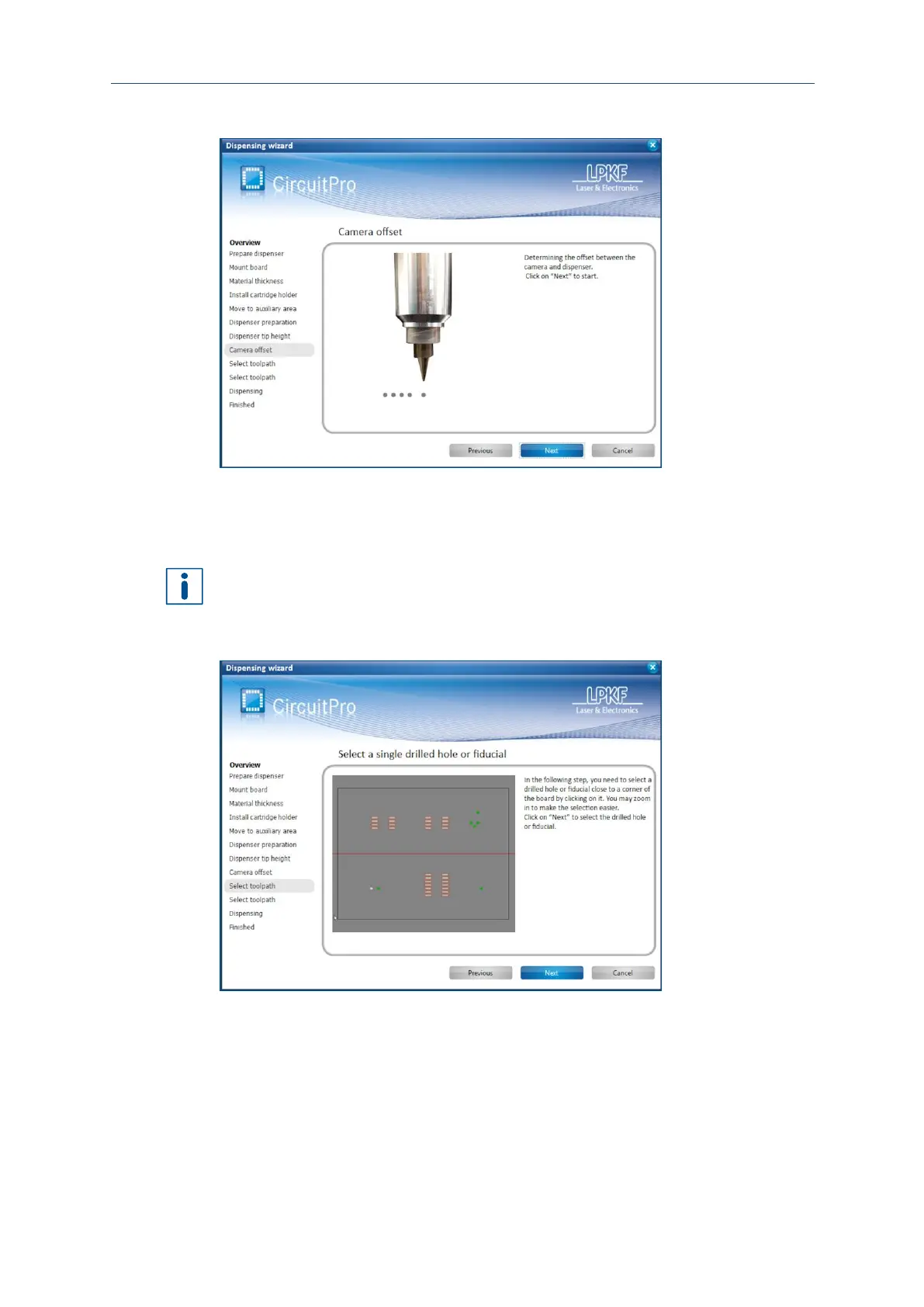

Fig. 115: Determining the camera offset to the dispenser needle
25. Click on [Next].
First, the dispenser generates five solder paste dots. These are subsequently
focused with the camera to determine the offset.
If the camera cannot detect a solder paste dot, the spiral search is started (for further
information refer to the CircuitPro PM compendium).
 The following dialog is displayed:
Fig. 116: Selecting the drill hole
26. Click on [Next].
