ProtoMat S64/S104
Operating the system
V. 1.0 | LPKF Laser & Electronics AG
117/160
 The following dialog is displayed:

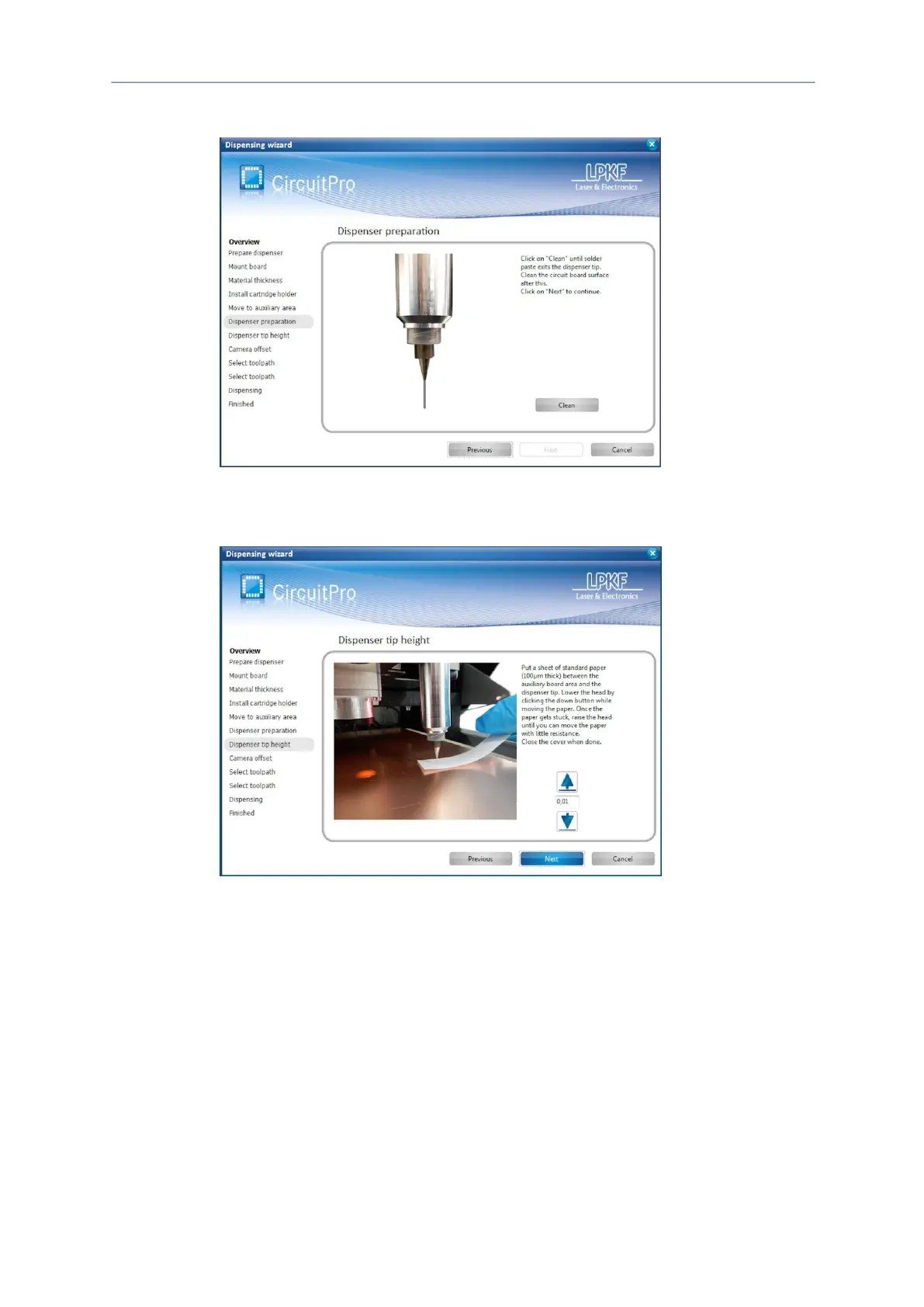

Fig. 113: Preparing the dispenser
23. Follow the instructions in the dialog and subsequently click on [Next].
 The following dialog is displayed:
Fig. 114: Determining the height of the dispenser tip
24. Follow the instructions in the dialog and subsequently click on [Next].
