LPKF ProtoMat S64 - Page 116

Operating the system
ProtoMat S64/S104
116/160
LPKF Laser & Electronics AG | V. 1.0
 The view changes as follows:

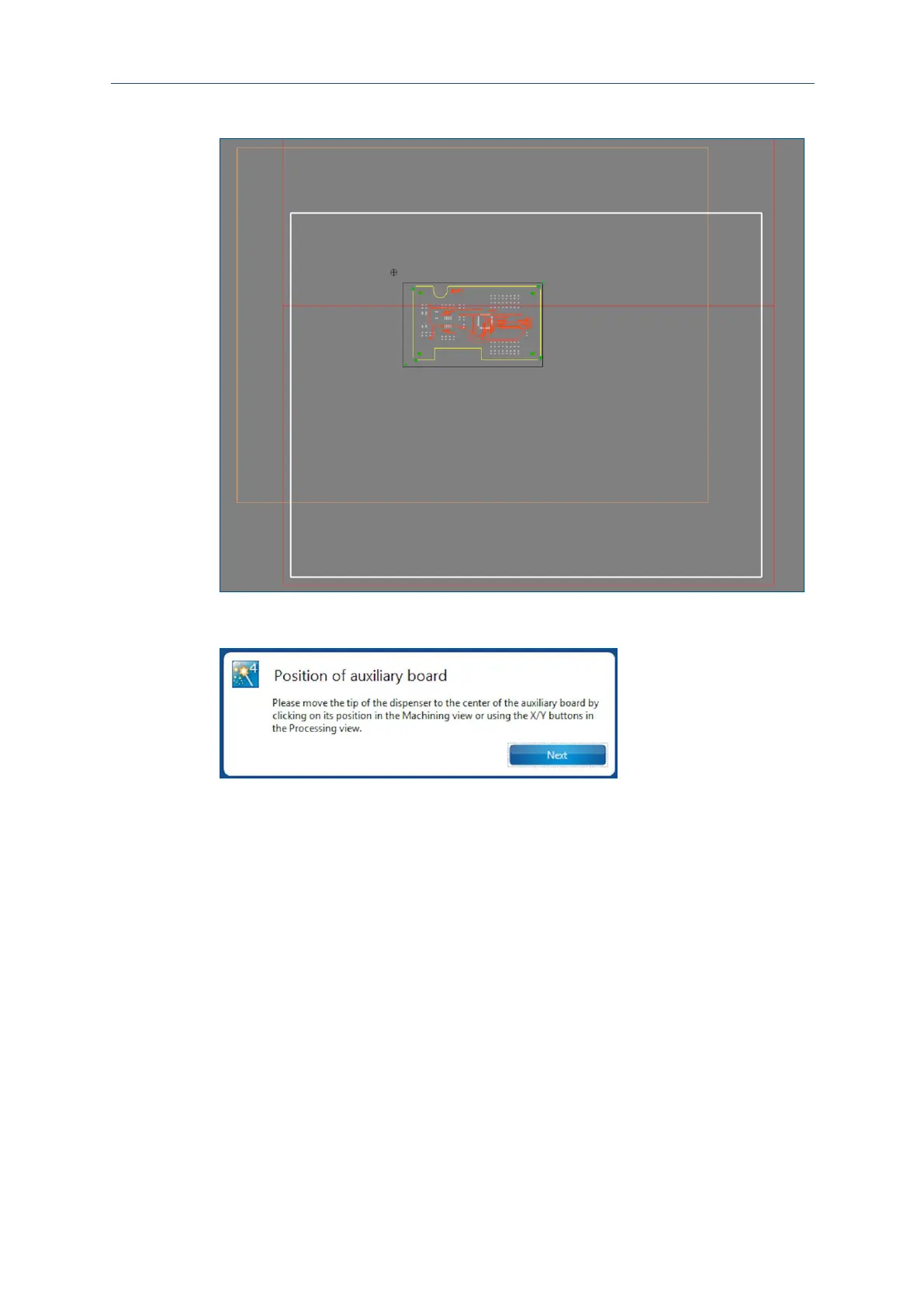

Fig. 111: Determining the position of the auxiliary board
21. Click on any position to determine the area of the auxiliary board.
Fig. 112: Dialog Position of auxiliary board area
22. Click on [Next].
