 The following dialog is displayed:

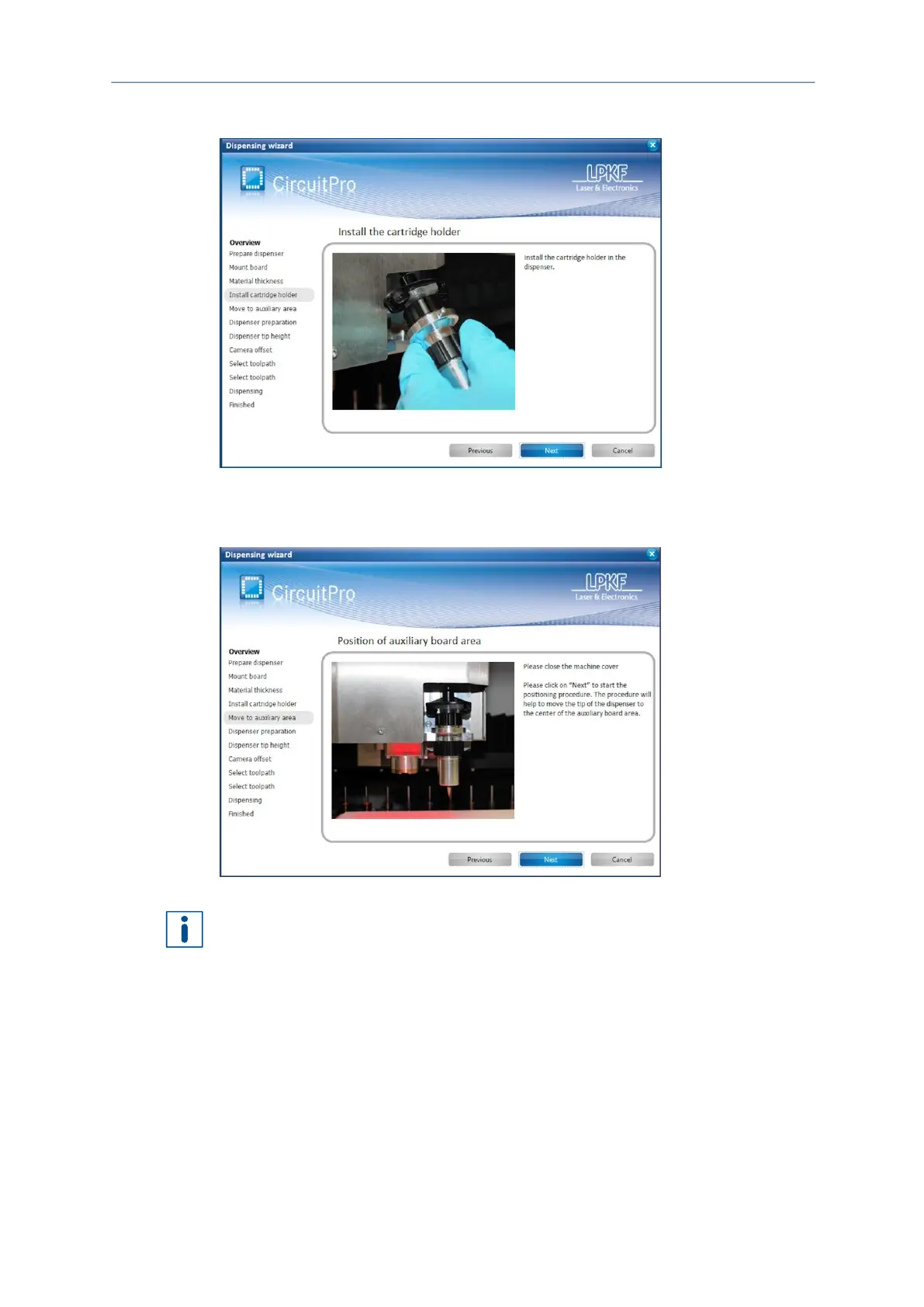

Fig. 109: Installing the cartridge holder
19. Follow the instructions in the dialog and subsequently click on [Next].
 The following dialog is displayed:
Fig. 110: Determining the position of the auxiliary board
The auxiliary board represents the area that is required for cleaning the dispenser
needle in the following steps. This area should be outside of your actual PCB so
solder paste that might escape does not reduce the quality of your PCB.
20. Click on [Next].
