 The following dialog is displayed:

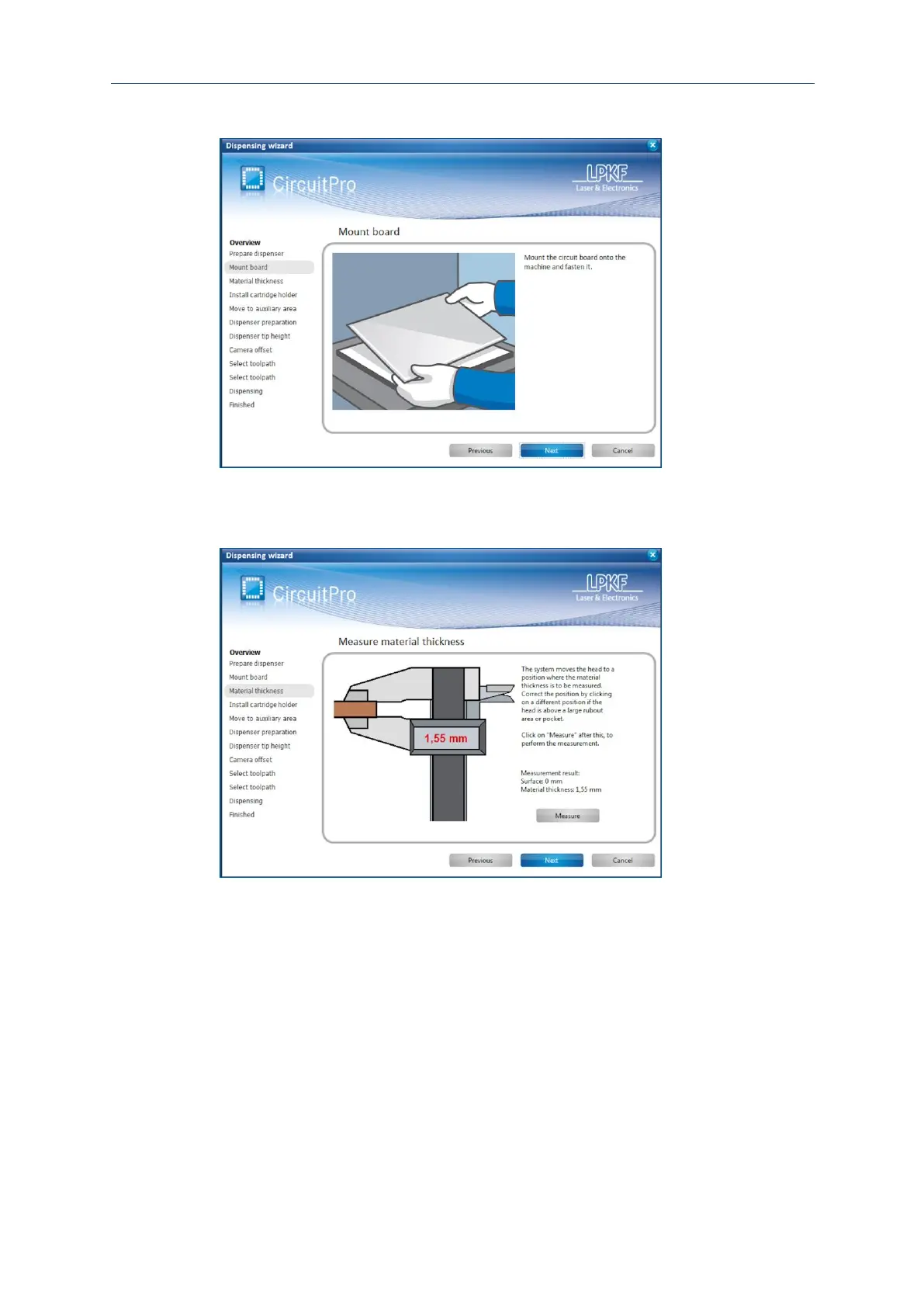

Fig. 107: Placing the PCB
16. Follow the instructions in the dialog and subsequently click on [Next].
 The following dialog is displayed:
Fig. 108: Measuring the thickness of the material
17. Click on [Measure].
 The material thickness is automatically measured with the working-depth limiter.
The measured value is displayed in the dialog.
18. Click on [Next].
