LPKF ProtoMat S64 - Page 113

ProtoMat S64/S104
Operating the system
V. 1.0 | LPKF Laser & Electronics AG
113/160
 The CAM view changes as follows:

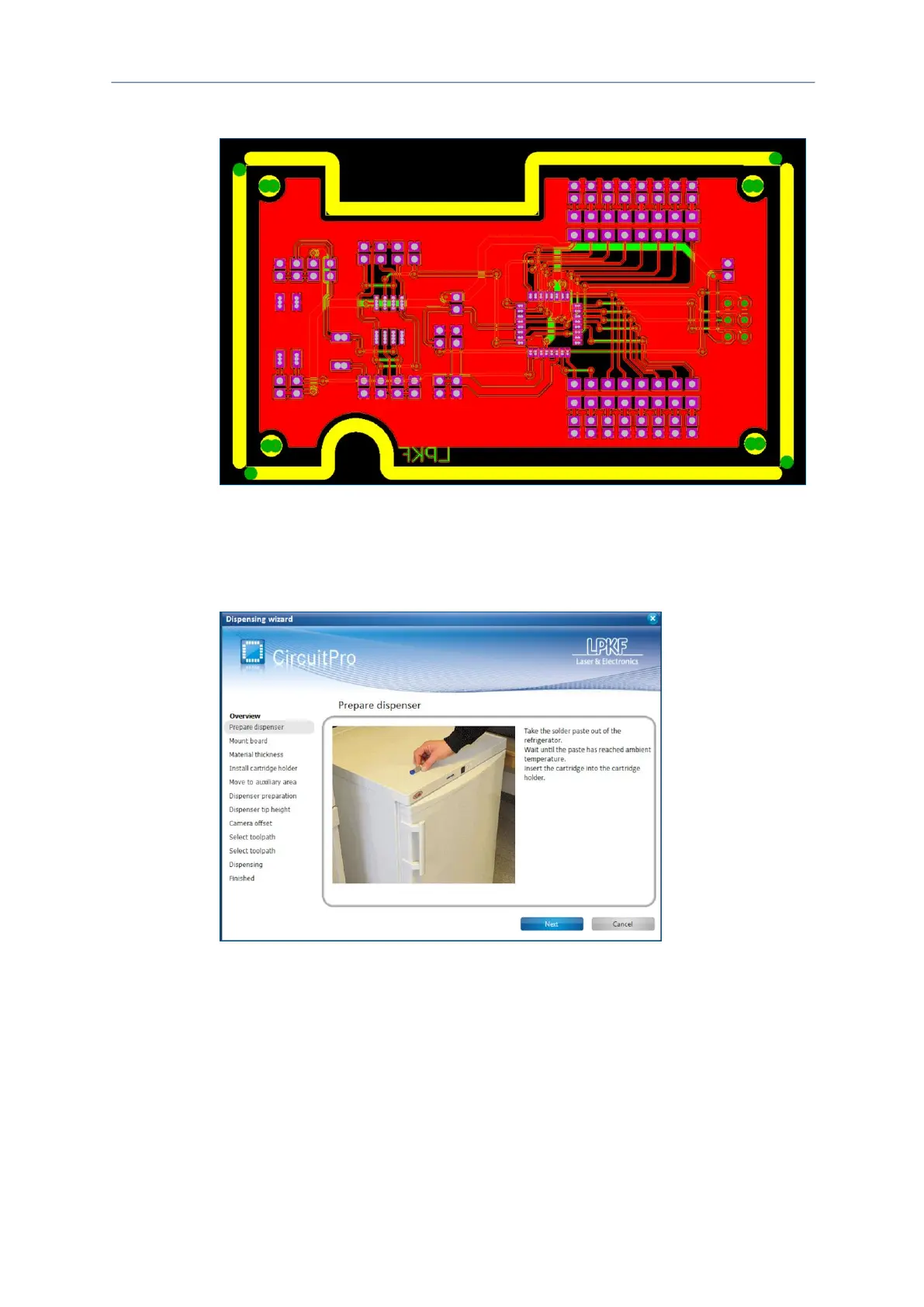

Fig. 105: CAM view after calculating the dispenser toolpaths
13. In the dialog Dispense click on [Close].
 The dispenser toolpaths are generated.
14. Click on Wizards > Dispense Wizard…
 The following dialog is displayed:
Fig. 106: Preparing the dispenser
15. Follow the instructions in the dialog and subsequently click on [Next].
