 Replacing the filter bag
Ensure that the following prerequisites are fulfilled before performing the described
tasks:
Prerequisites
Spare parts and auxiliaries
 The filter is full or the last replacement was 3
months ago.
 The extraction system is switched off.
 Protective gloves
 Respirator mask
 New filter bag
1. Remove the knob screws on the side cover.

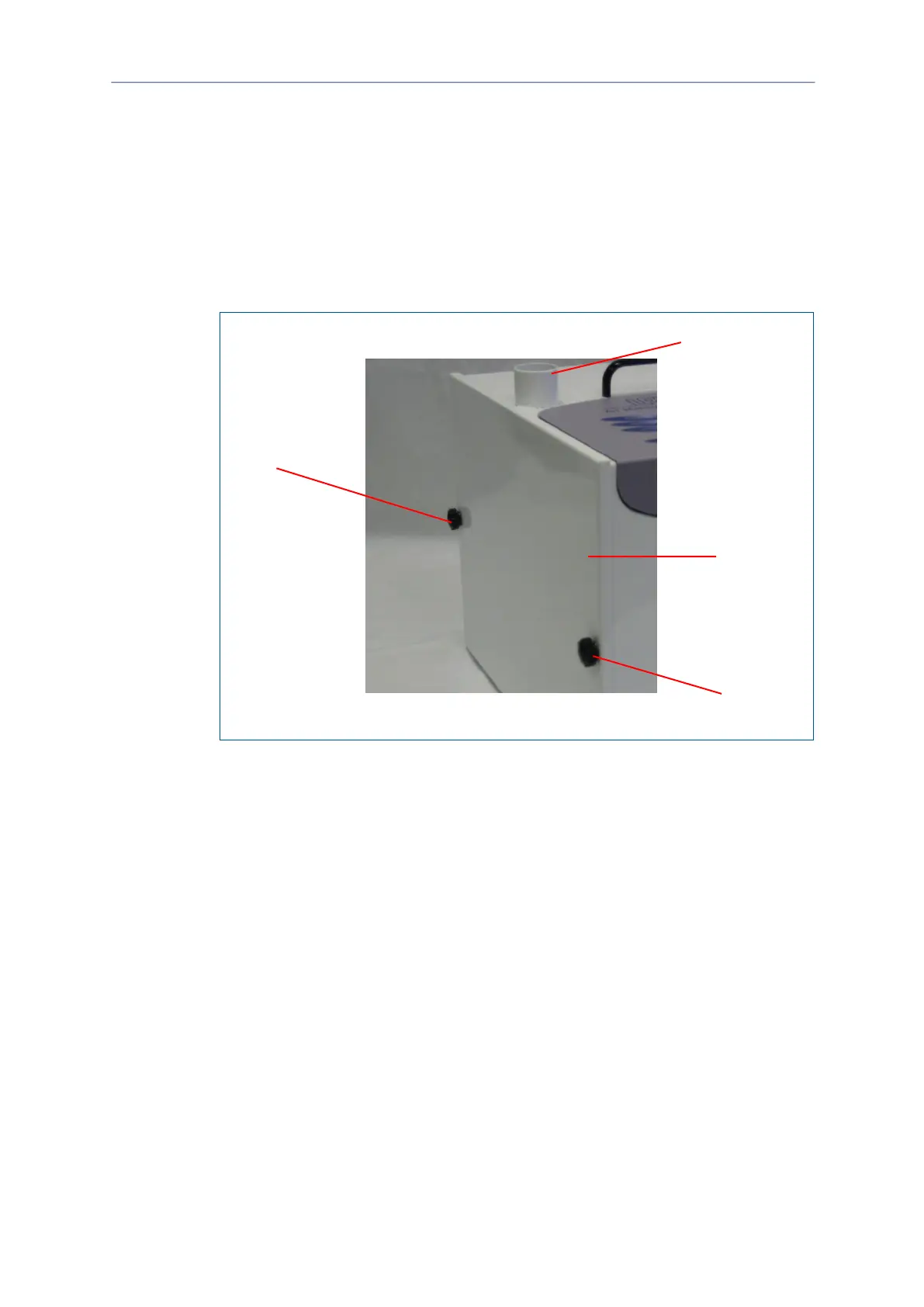

Fig. 154: Side view
1 Knob screw
2 Air inlet
3 Side cover
2. Remove the side cover (3).
 The filter bag is visible.
3. Remove the filter bag from the air inlet.
4. Fasten the new filter bag to the air inlet on the inside.
