Maintenance
ProtoMat S64/S104
140/160
LPKF Laser & Electronics AG | V. 1.0

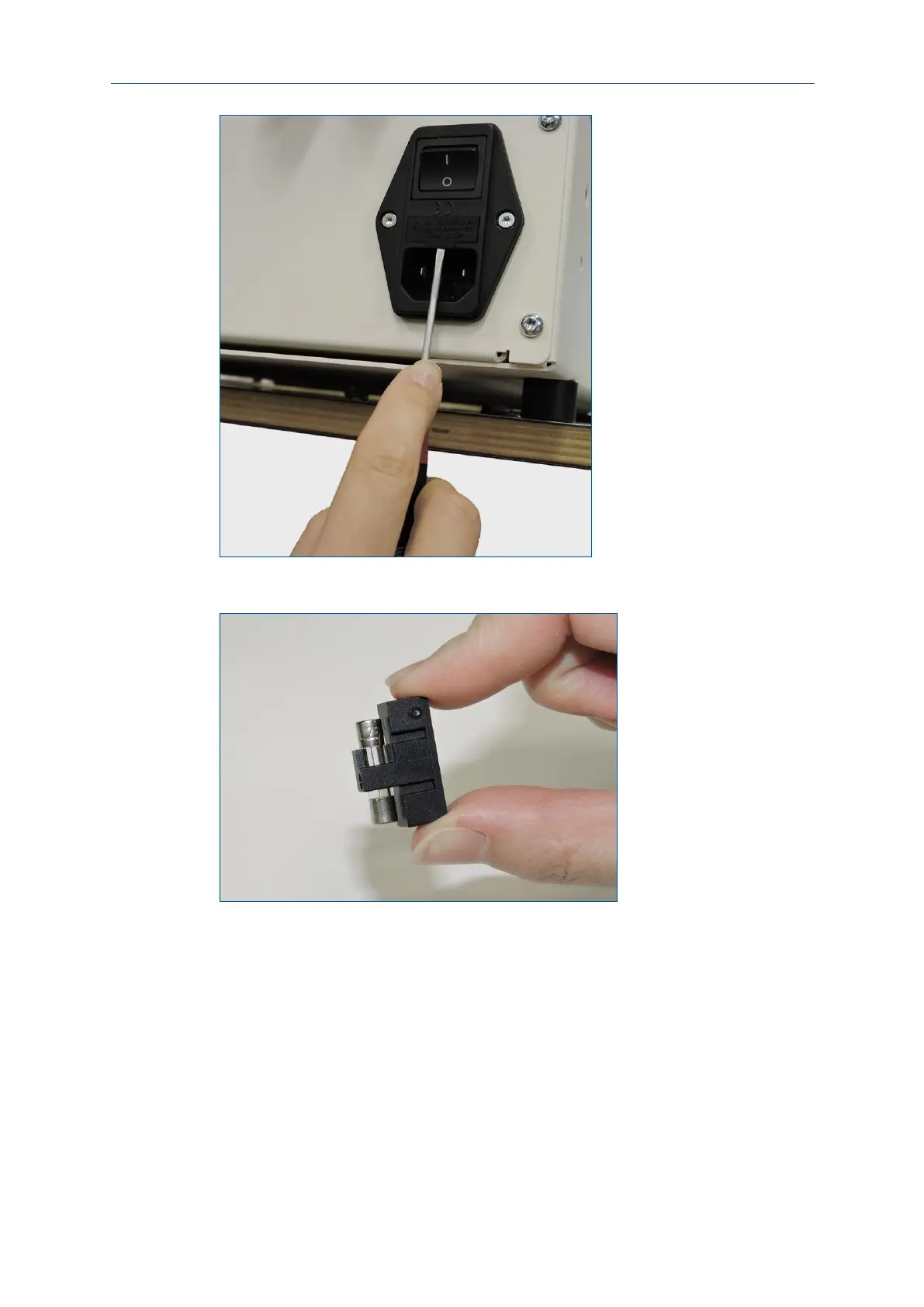

Fig. 152: Removing the fuse holder
3. Pull out the fuse holder containing the fuse.
Fig. 153: Fuse holder containing the fuse.
4. Replace the fuse.
5. Reinsert the fuse holder containing the new fuse.
6. Push in the fuse holder completely.
7. Reconnect the mains cable to the power supply.
8. Switch on the system.

The fuse has been replaced.
