First startup
ProtoMat S64/S104
70/160
LPKF Laser & Electronics AG | V. 1.0
 Connecting the extraction system
CAUTION! Tripping hazard by hoses and cables!
Hoses and cables are routed to the system. If the hoses and cables are laid
inappropriately they pose a tripping hazard for the operating personnel.
 Always ensure that the hoses and cables do not pose a tripping hazard.
1. Connect the provided nozzle to the extraction hose.
2. Connect the end of the extraction hose that is now equipped with the nozzle to the
extraction tube of the system.

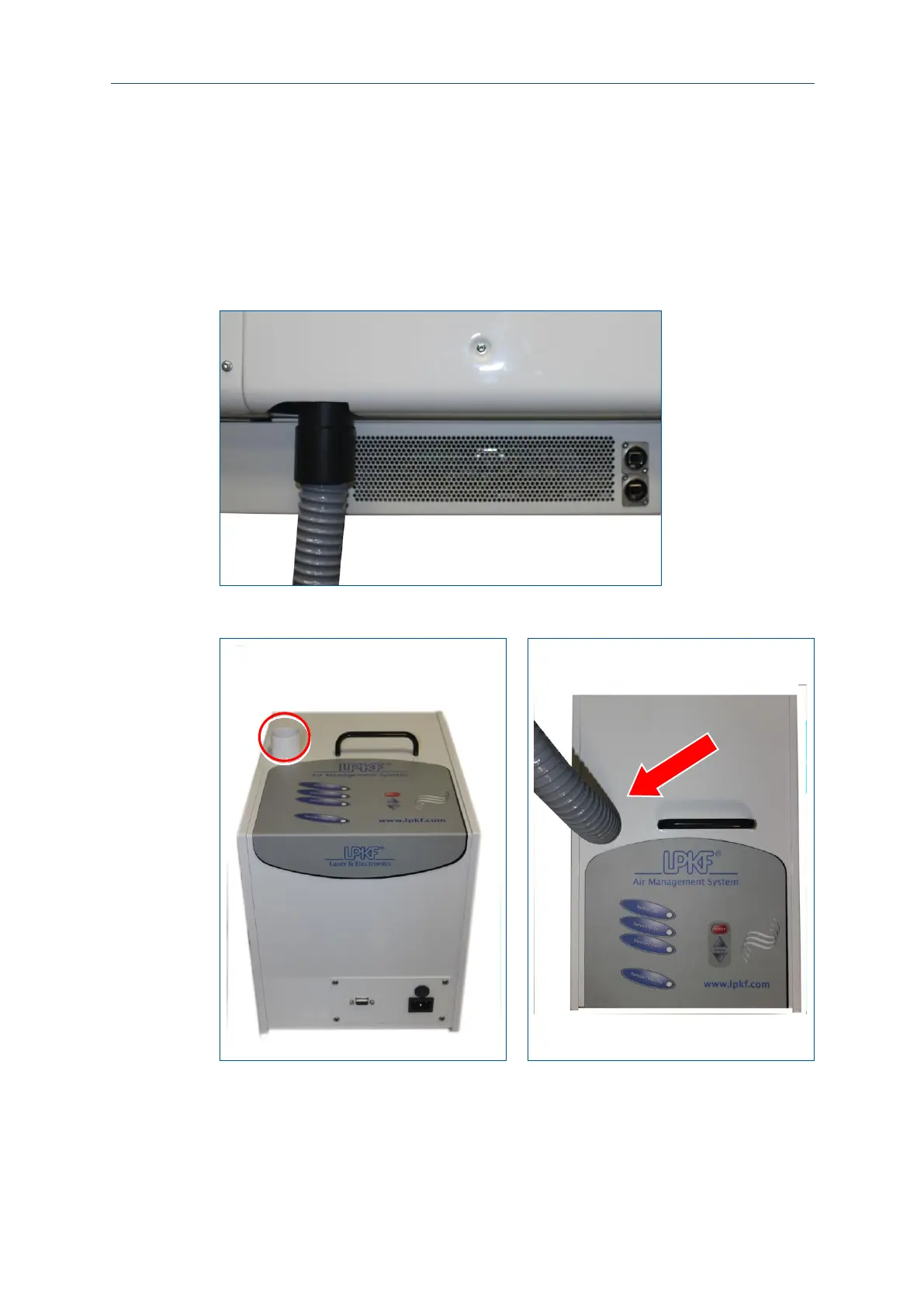

Fig. 44: Extraction hose connected to the system
3. Connect the other end of the extraction hose with the extraction system.
Fig. 45: Connecting the extraction hose
