Operating the system
ProtoMat S64/S104
82/160
LPKF Laser & Electronics AG | V. 1.0
 Starting CircuitPro PM
1. Click on the desktop link or on Start > (All) Programs > LPKF Laser & Electronics
> CircuitPro PM.
 The following dialog is displayed:

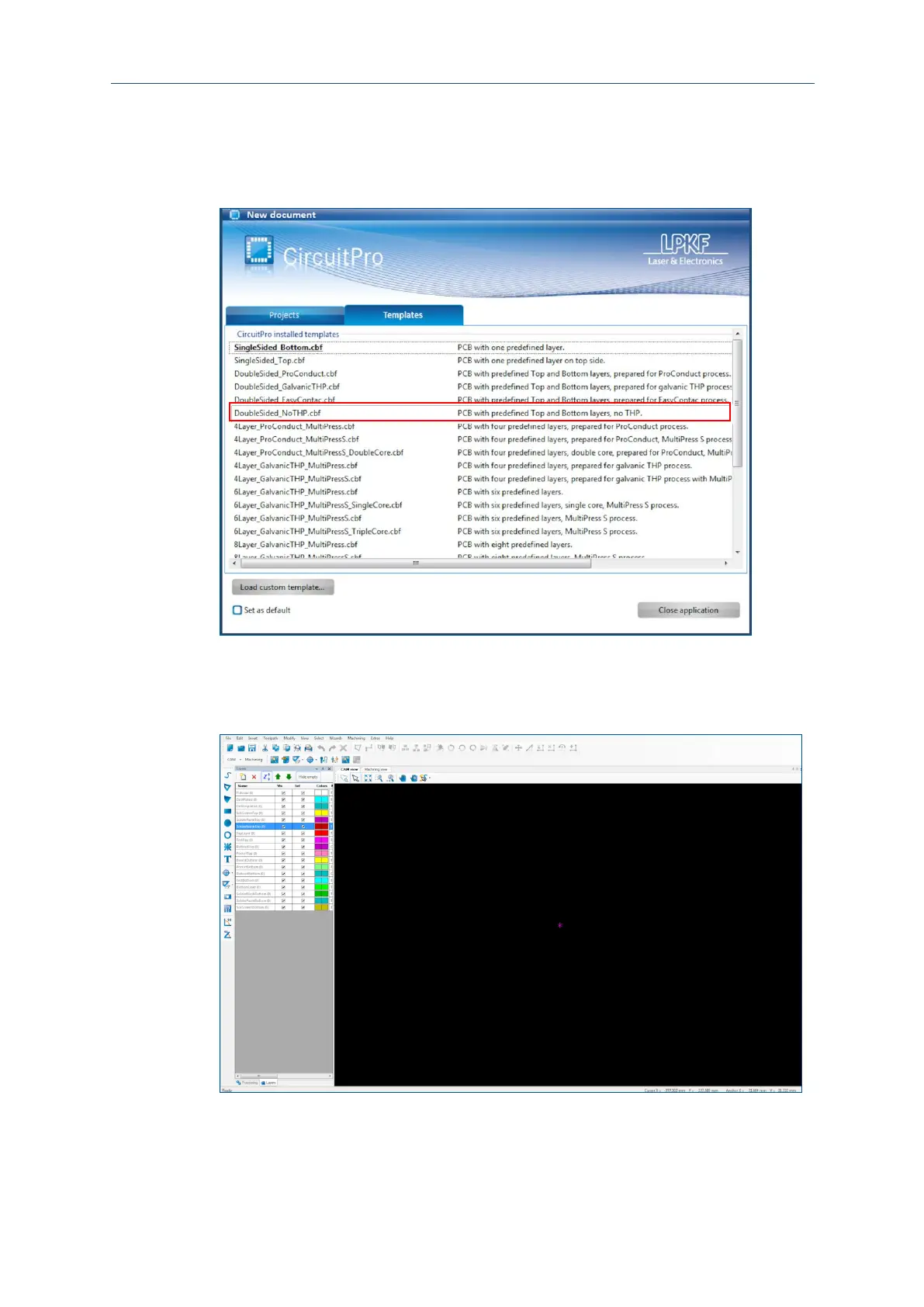

Fig. 63: Dialog New document
4. Select the template DoubleSided_NoTHP.cbf in the tab Templates to create a
double-sided PCB.
 The dialog is closed and the user interface changes as follows:
Fig. 64: CircuitPro PM user interface

CircuitPro PM has been started.
