ProtoMat S64/S104
Operating the system
V. 1.0 | LPKF Laser & Electronics AG
93/160
2. Assign the required tools to the tool holder positions:

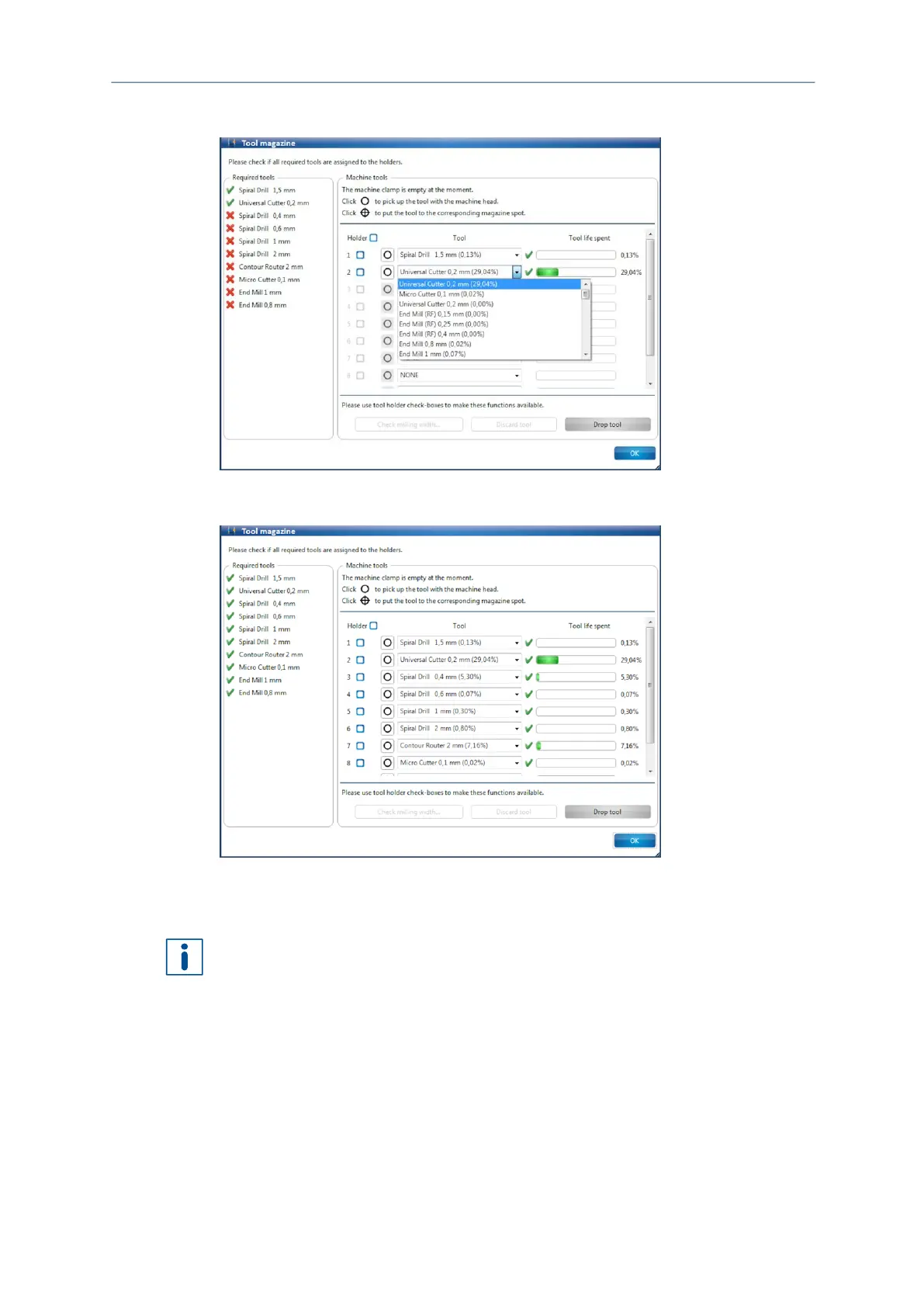

Fig. 80: Assigning tools
 Once all tools have been assigned successfully the view changes as follows:
Fig. 81: All tools assigned
3. Open the system cover.
4. Insert the tools into the tool holders of the tool magazine.
Ensure that the tools are inserted into the tool holder positions that you have assigned
in the dialog Tool magazine!
