LPKF ProtoMat S64 - Page 94

Operating the system
ProtoMat S64/S104
94/160
LPKF Laser & Electronics AG | V. 1.0

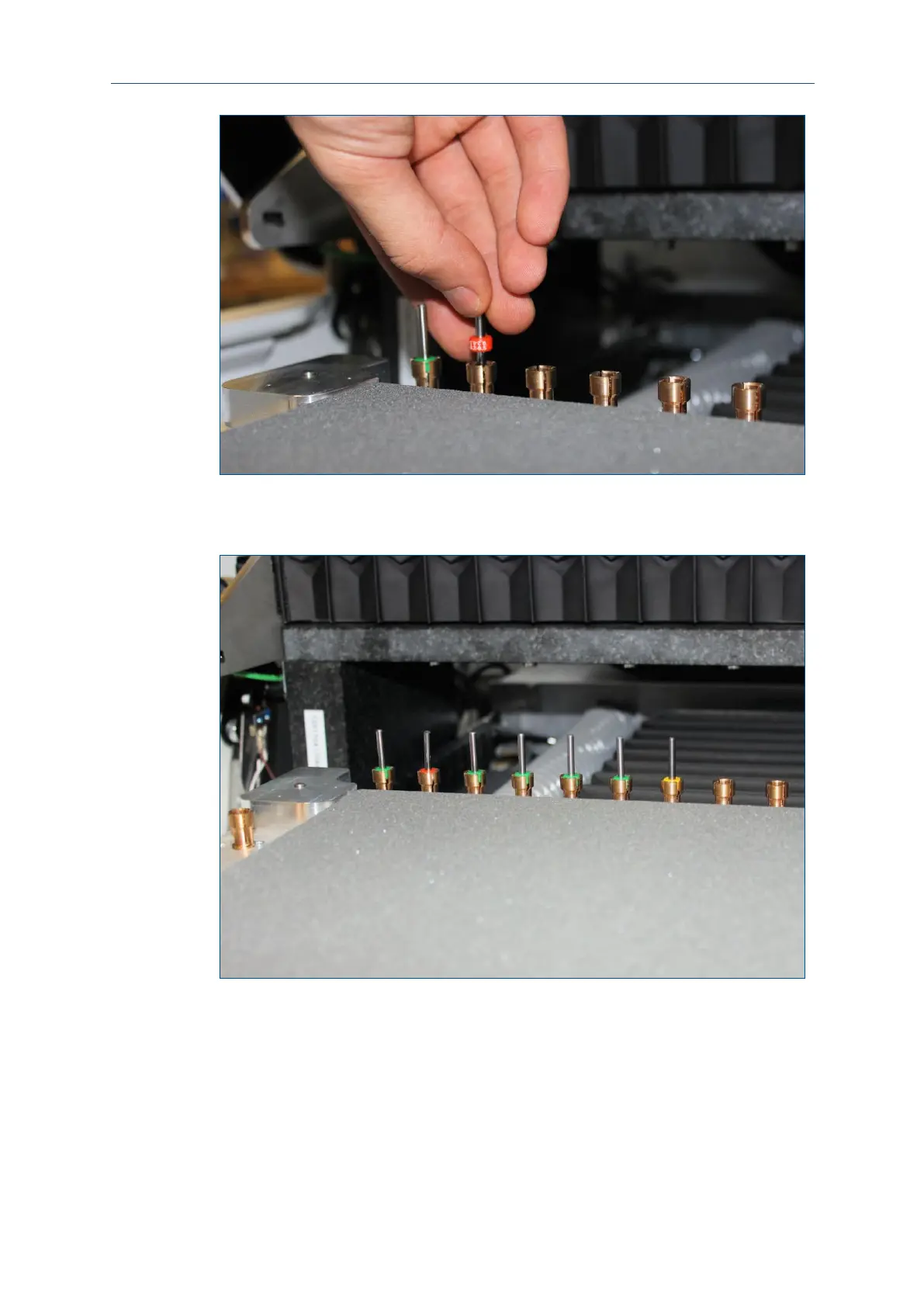

Fig. 82: Inserting tools
5. Click on [OK].
 The dialog is closed. The tools are in their holder positions.
Fig. 83: Loaded tool magazine (example)

The tool magazine has been loaded.
