4.4 Checking Oil Level in Header Drive Gearbox
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.

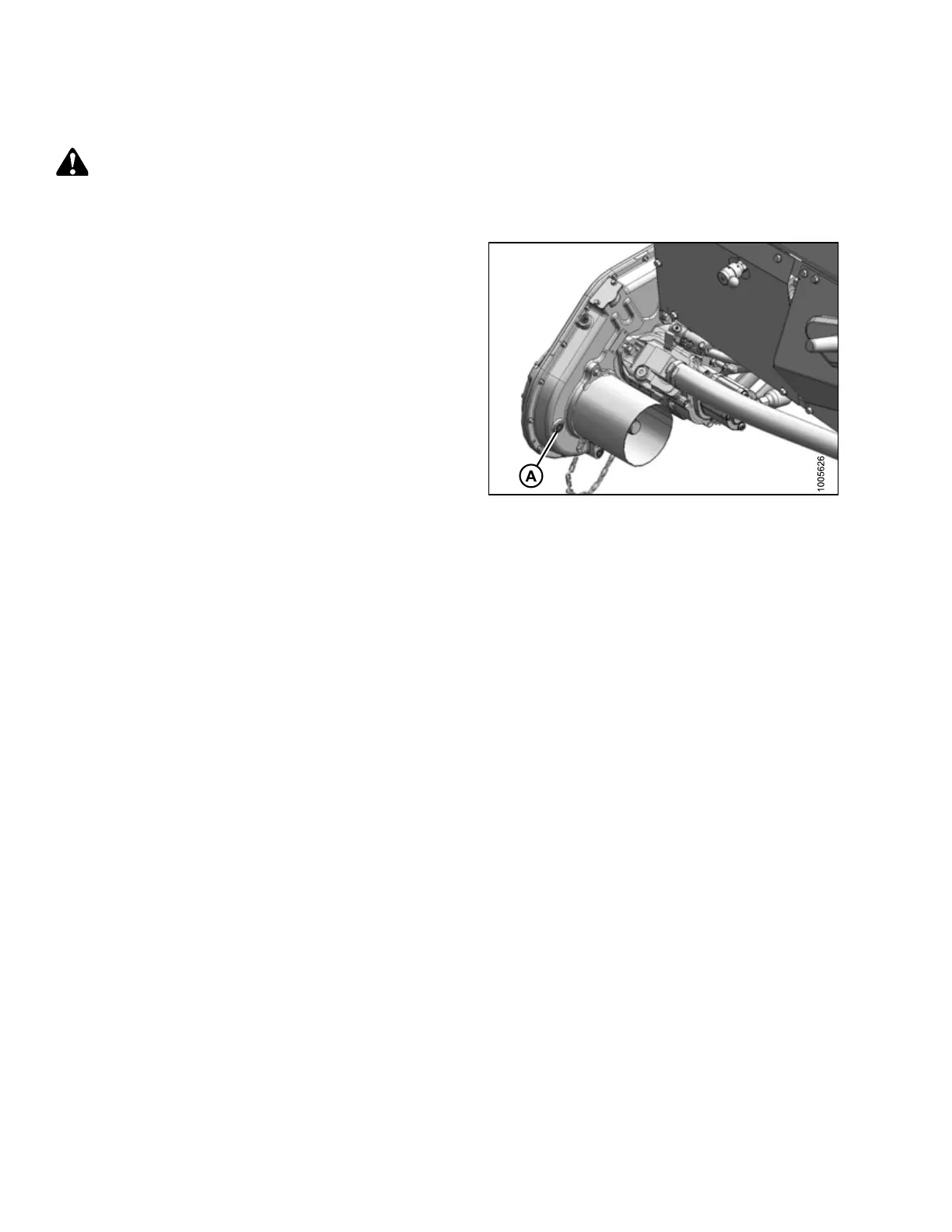

Figure 4.4: Header Drive Gearbox
1. Lower cutterbar to ground and ensure gearbox is in
working position.
2. Shut down combine and remove key from ignition.
3. Remove oil level plug (A) and check that oil level is up
to bottom of hole.
4. If no oil is required, replace oil level plug (A).
PERFORMING PREDELIVERY CHECKS
