214325 252 Revision A

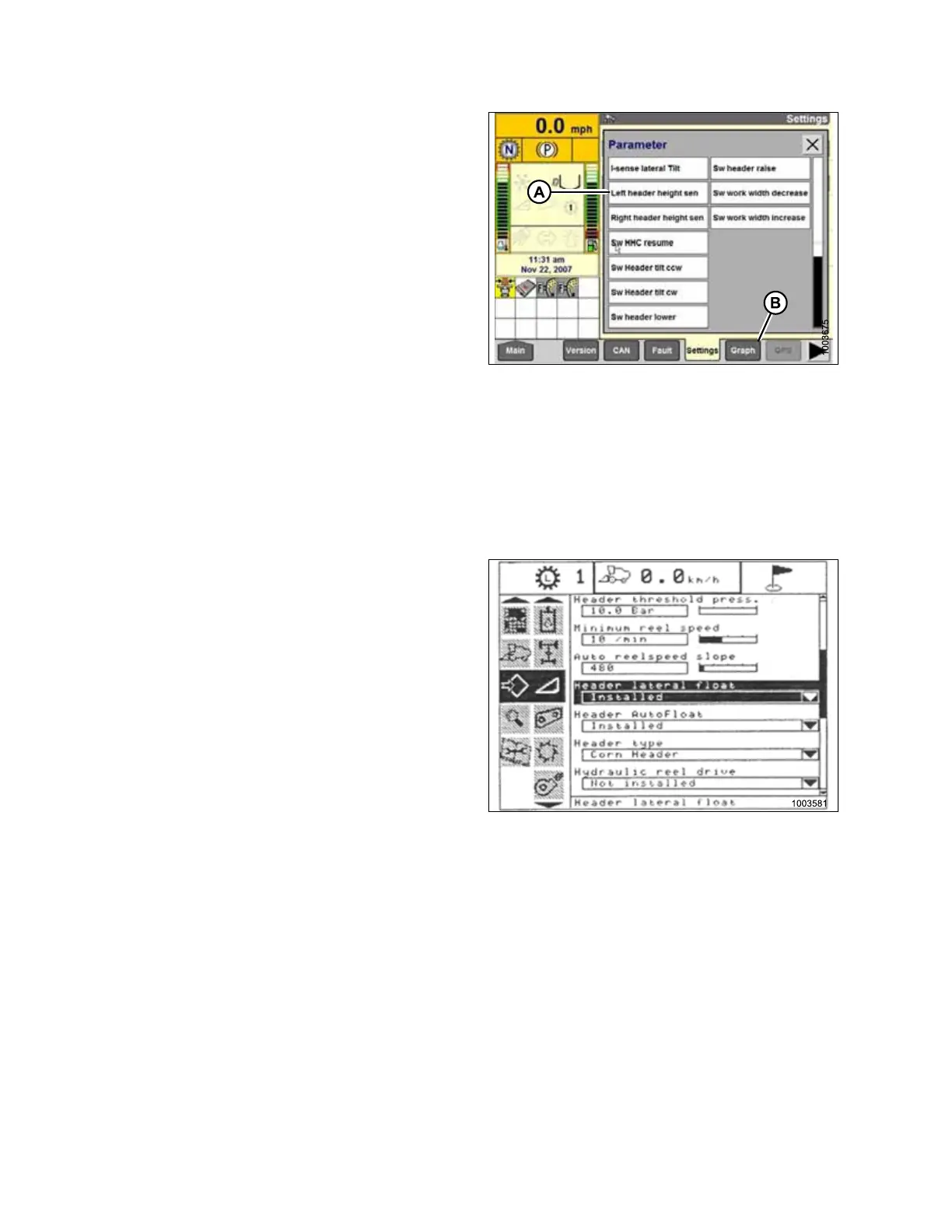

Figure 5.245: New Holland Combine Display
9. Select LEFT HEADER HEIGHT SEN (A), and then
select GRAPH button (B). The exact voltage is
displayed at top of page.
10. Raise and lower header to see full range of voltage
readings.
11. Adjust voltage limits (refer to Adjusting Voltage Limits, page 142) if sensor voltage is not within low and high
limits or if range between low and high limits is insufficient (refer to Table 5.1, page 140).
Engaging Auto Header Height Control (New Holland CR/CX Series)
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to
combine operator’s manual for updates.
Figure 5.246: New Holland Combine Display
1. Select HEADER LATERAL FLOAT on combine display,
and press ENTER.
2. Use up and down navigation keys to move between
options, and select INSTALLED.
SETTING UP AUTO HEADER HEIGHT CONTROL
