214325 69 Revision A

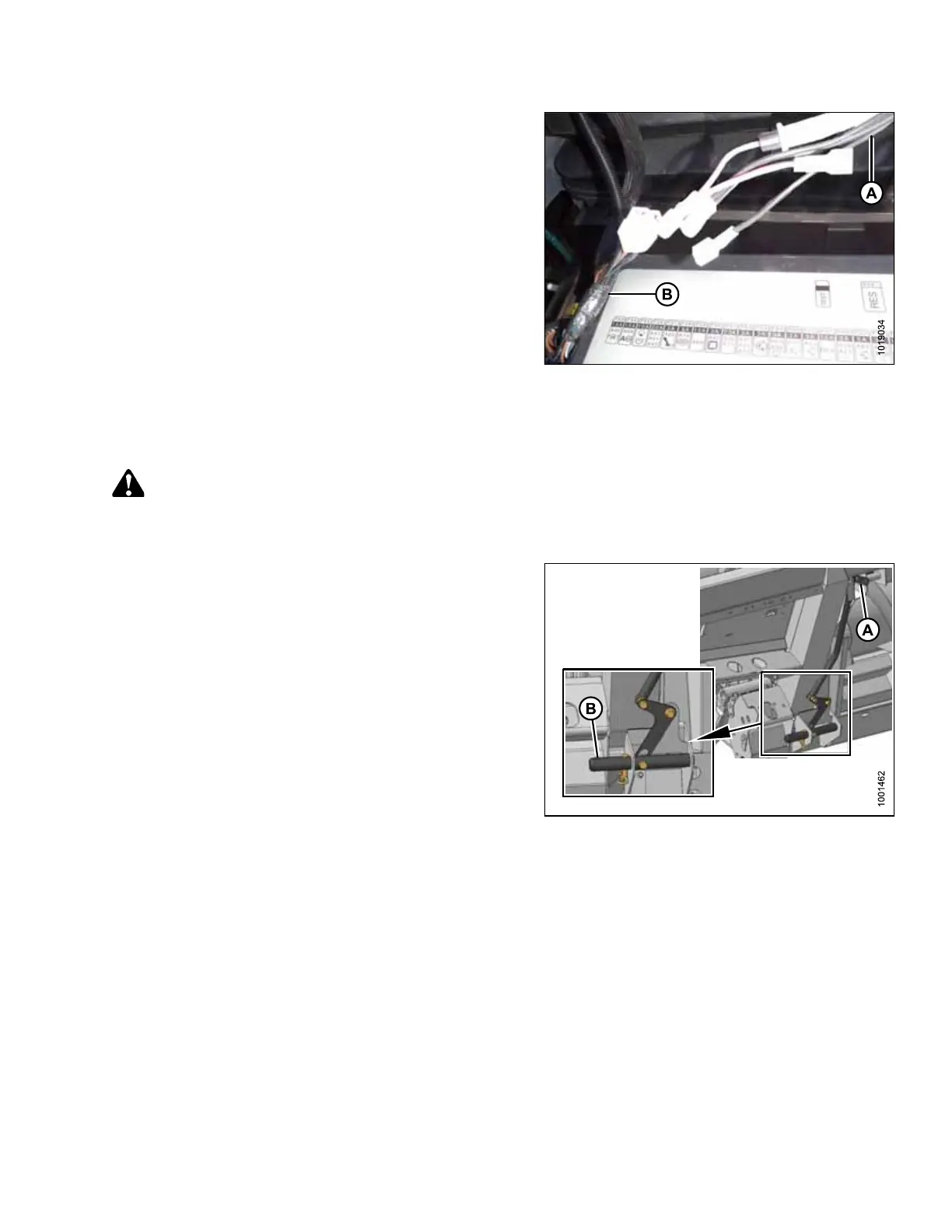

Figure 3.125: Existing Harness and
MacDon Harness
29. Route excess MacDon harness length back into the
terminal compartment.
30. Secure MacDon harness (A) to existing CLAAS
harness (B) with cable ties.
Attaching Header to CLAAS Combine
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
Figure 3.126: Pins Retracted
1. Move handle (A) on CA25 Combine Adapter into raised
position, and ensure pins (B) at bottom corners of
adapter are retracted.
ASSEMBLING HEADER AND ADAPTER
