MacDon FFT FD75 - Adjusting Header Raise;Lower Rate (Gleaner R65;R66;R75;R76 and S Series); Turning Accumulator off (Gleaner R65;R66;R75;R76 and S Series)

214325 174 Revision A
8. Wait for HEADER TILT LEFT light (not shown) to start flashing, and then tilt header to maximum left position.
9. Press CAL2 button (G) until HEADER TILT LEFT light (not shown) stops flashing, and release button when
HEADER TILT RIGHT light (not shown) begins flashing.
10. Tilt header to maximum right position.
11. Press CAL2 button (G) until all of following lights flash: raise header (D), lower header (E), height auto
mode (A), right header and left header (not shown), and tilt auto mode (F).
12. Center header.
13. Press CAL1 button (C) to exit calibration and save all values to memory. All lights should stop flashing.
Turning Accumulator Off (Gleaner R65/R66/R75/R76 and S Series)
The accumulator will affect combine’s reaction time and greatly inhibit auto header height control’s performance.

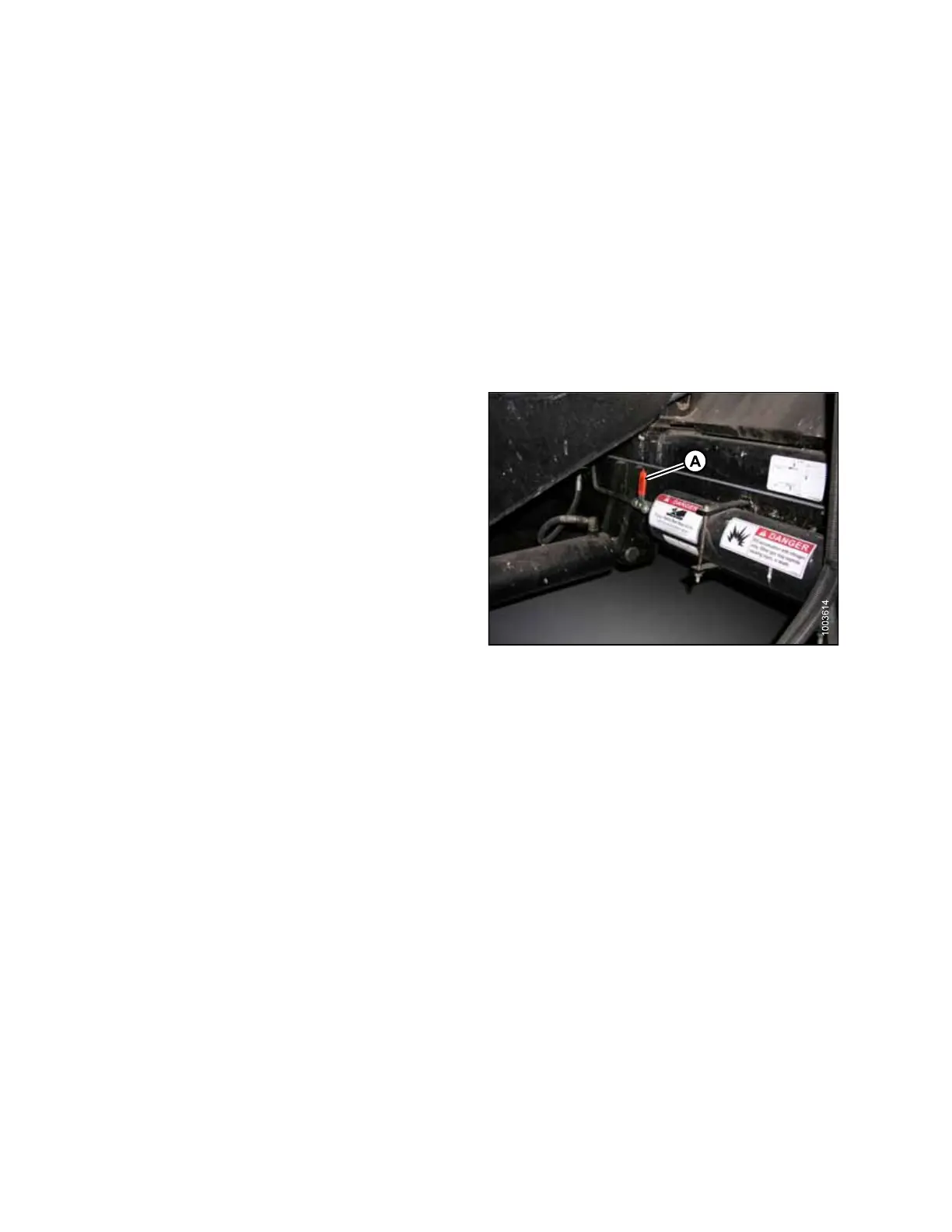

Figure 5.76: Combine Accumulator
ON/OFF Switch
A - Accumulator Lever (Off Position)
Refer to combine operator’s manual for proper procedure
when turning accumulator off and on. For best performance,
turn feeder house accumulator off.
NOTE:
The accumulator is located in front of front left axle beam.
Adjusting Header Raise/Lower Rate (Gleaner R65/R66/R75/R76 and S Series)
NOTE:
Refer to 5.1.7 Gleaner S9 Series Combines, page 179 for information specific to Gleaner S9 Series.
NOTE:
Changes may have been made to combine controls or display since this document was published. Refer to
combine operator’s manual for updates.
SETTING UP AUTO HEADER HEIGHT CONTROL
