214325 15 Revision A
3 Assembling Header and Adapter
Perform all procedures in order in which they are listed.
3.1 Attaching Reel Lift Cylinders

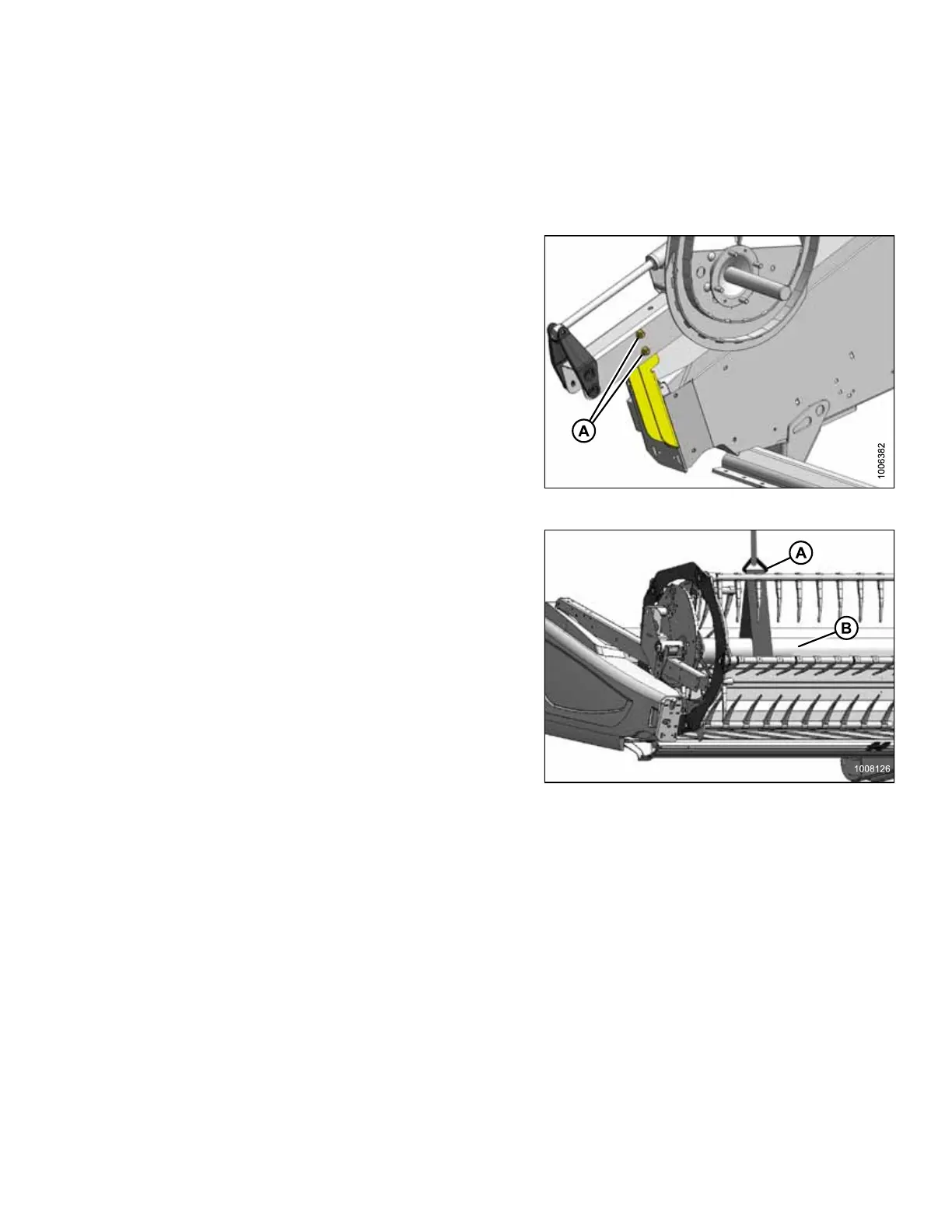

Figure 3.1: Reel Outboard Support Arm
1. Remove two top bolts (A) on outboard reel arm
supports. Repeat for opposite side.
Figure 3.2: Right End Reel Lift
2. Position sling (A) around reel tube (B) close to outboard
end of reel, and attach sling to a forklift (or equivalent).
3. Remove shipping wire/banding from reel lift cylinder.
To Next Page
